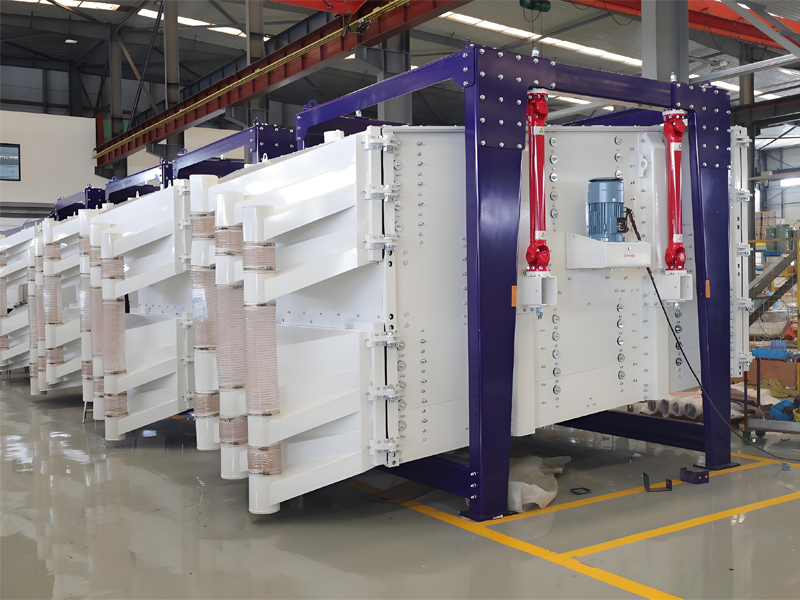

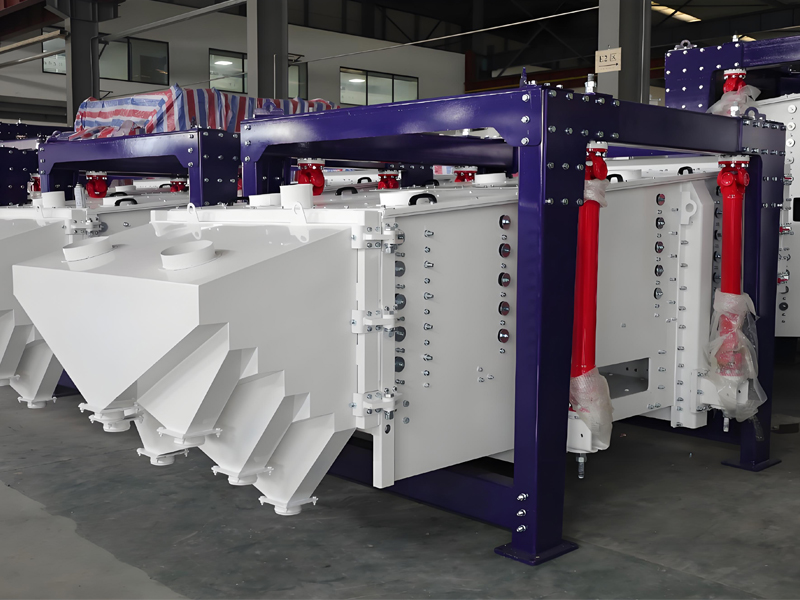

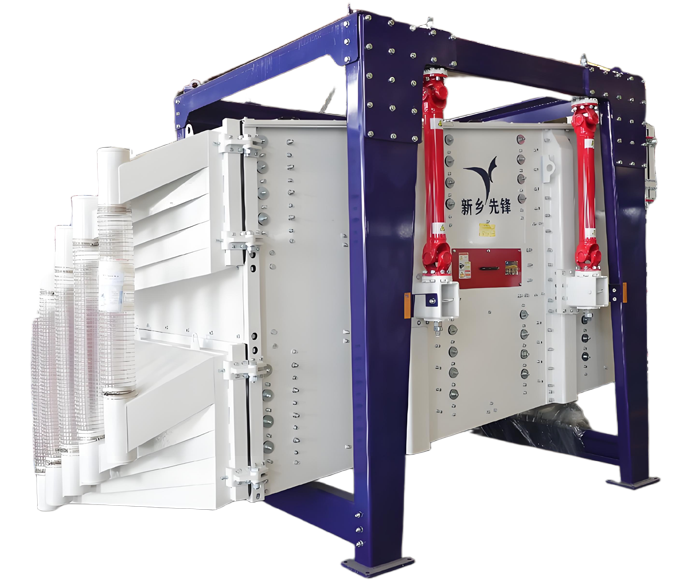

Square swing screen, also known as rectangular swing screen, is a screening equipment with high precision and large output. It has a self-cleaning effect, high screen utilization rate, long service life, and good sealing effect; Simply pursuing screening accuracy will sacrifice output, while pursuing high output will lead to a decrease in accuracy. Square swing screen is a specially designed screening equipment with high precision and high output, widely used in industries such as chemical and new materials, metallurgy, metal powder, mineral powder, food, salt, sugar, abrasive, feed, etc; By using a square oscillating vibrating screen to vibrate and oscillate the vibrator, it is transmitted to the screen surface, allowing the material to quickly disperse at the front of the screen, thus achieving the purpose of screening.
Fully enclosed structure
Fully enclosed structure, no dust flying, low vibration and noise of the screening machine, in line with environmental protection requirements.
Flexible screening
Flexible screening, with acceleration 4-5 times lower than ordinary vibrating screens, improves service life and reduces maintenance costs.
Changing the network is more convenient
Changing the network is more convenient, easy to operate, and reliable.
Large scale electrostatic spraying technology
Large scale electrostatic spraying technology makes the equipment more beautiful, wear-resistant, and rust resistant.
Rotary screening
Rotary screening: Two layers of screens with the same aperture are used to screen materials that have been screened once again, in order to achieve higher screening accuracy.
Rotary reverse screening
Rotary reverse screening: Material screening is carried out in a manner from fine to medium fine to medium to coarse, with coarse materials serving to clean the mesh to a certain extent.

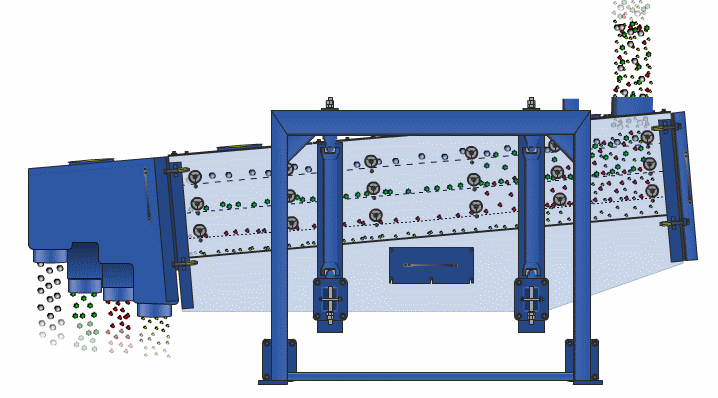

After the screening machine is started, the shaking body of the screening machine, that is, the screening box, moves back and forth under the action of inertia. The screening box drives the screening surface to shake periodically, so that the material on the screening surface moves in a directional jumping motion together with the screening box. During this process, the material smaller than the aperture of the screening surface falls to the lower layer through the screening hole, becoming the undersized material. The material larger than the aperture of the screening surface is discharged from the discharge port after continuous rolling and jumping motion, thus completing the screening work.
Equipment model (Single feed) | Effective screening area（㎡） | Power（KW） | Screen surface inclination（°） | Number of layers | Cyclotron frequency（r/min） | Screening box travel |
XFYBS1030 | 3 | 3 | 5-8 | 1-5 | 180-260 | 25-60 |
XFYBS1036 | 3.6 | |||||
XFYBS1230 | 3.6 | 4 | ||||
XFYBS1236 | 4.32 | |||||
XFYBS1530 | 4.5 | 5.5 | ||||
XFYBS1536 | 5.4 | |||||
XFYBS1830 | 5.4 | 7.5 | ||||
XFYBS1836 | 6.48 | |||||
XFYBS2030 | 6 | |||||
XFYBS2036 | 7.2 | |||||
Equipment model (dual feed) | Effective screening area（㎡） | Power（KW） | Screen surface inclination（°） | Number of layers | Cyclotron frequency（r/min） | Screening box travel |
XFYBS1536-6S | 5.4 | 5.5 | 5-8 | 6 | 180-260 | 25-60 |
XFYBS1536-8S | 8 | |||||
XFYBS1836-6S | 6.48 | 7.5 | 6 | |||
XFYBS1836-8S | 8 | |||||
XFYBS1836-10S | 10 | |||||
XFYBS2036-6S | 7.2 | 6 | ||||
XFYBS2036-8S | 8 | |||||
XFYBS2036-10S | 11 | 10 |

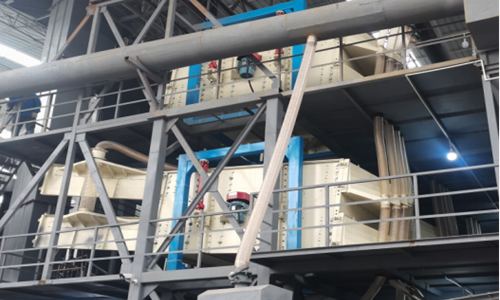

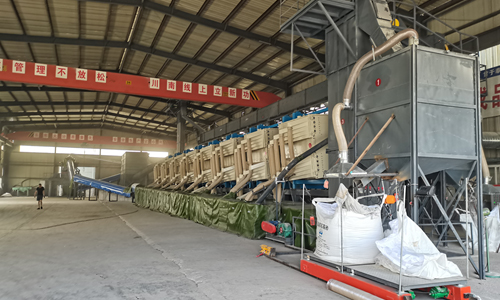

Scope of application: Building materials, mineral processing, metallurgy, chemical industry, abrasives, food and other industries
Applicable materials: dry powder mortar, machine-made sand, natural sand, quartz sand, perlite, dolomite, calcite, potassium feldspar and other various stone powders and mineral powders; Classification of industries such as metallurgy, metal powder, mineral powder, food, sugar, salt, abrasives, and feed.
Industrial salt
Metal powder
Quartz sand
Perlite
machine-made sand
mineral powder
White sugar
food additives
salt
