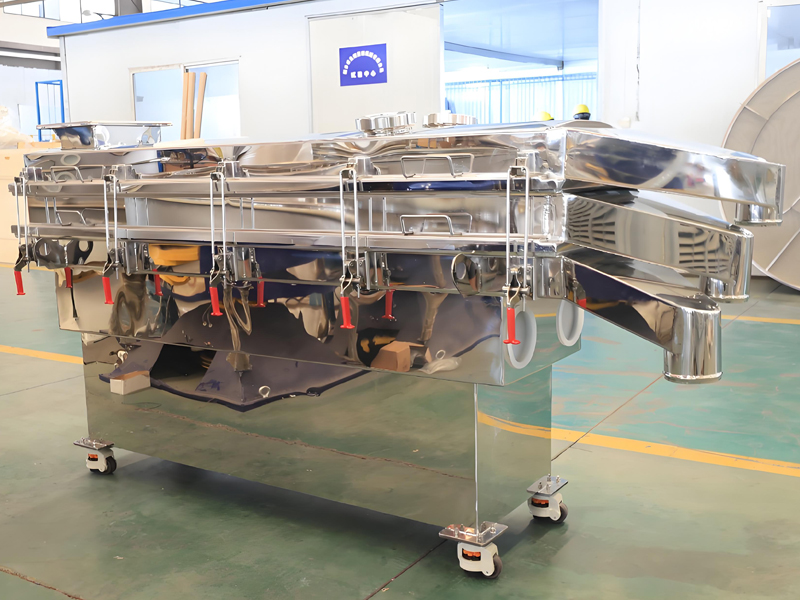

Stainless steel linear vibrating screen (stainless steel linear screen) is a rectangular vibrating screen welded with stainless steel plates. It is made of stainless steel material on the basis of a general linear vibrating screen. It is very practical in industries such as chemical engineering, with more stable performance, longer service life, and certain corrosion resistance. This series of linear screens can be designed as stainless steel material (i.e. all stainless steel vibrating screen) or the contact part between the screen body and the material can be made of stainless steel material according to customer requirements. High screening efficiency and large processing capacity.
Stainless steel linear sieve is made of selected 304 stainless steel material, which has a beautiful appearance and corrosion resistance;
The screening machine is exquisitely designed, easy to install and operate;

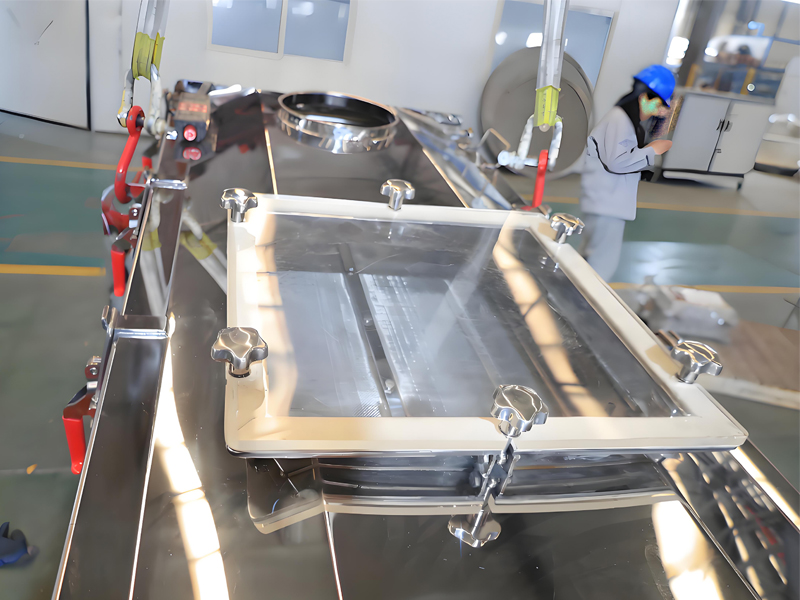

The replacement of the screen mesh is convenient and fast, with a long service life and reduced maintenance costs;
Fully enclosed structure, low noise;
All parts of the screen body are made of steel plates and profiles welded together (some components are connected by bolts), which is firm, reliable, runs smoothly, and has low energy consumption;
Automatic discharge, high screening efficiency, and large processing capacity.

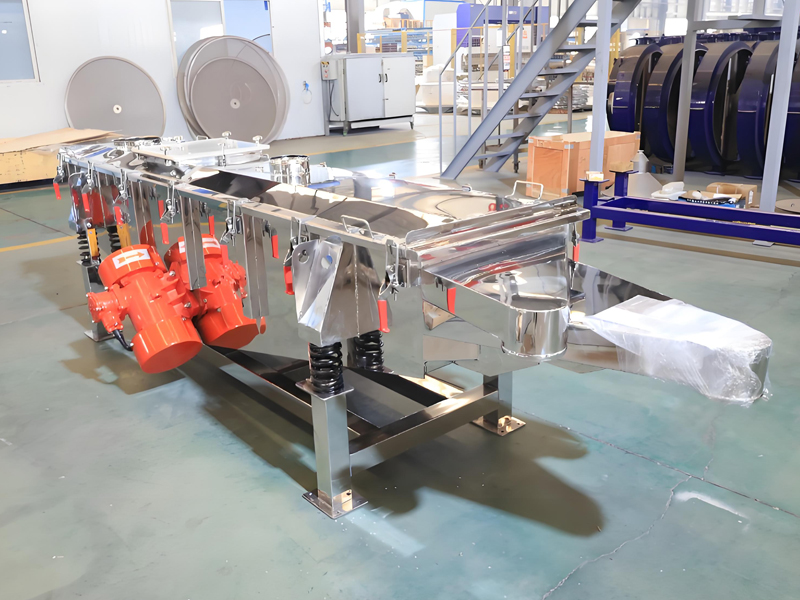

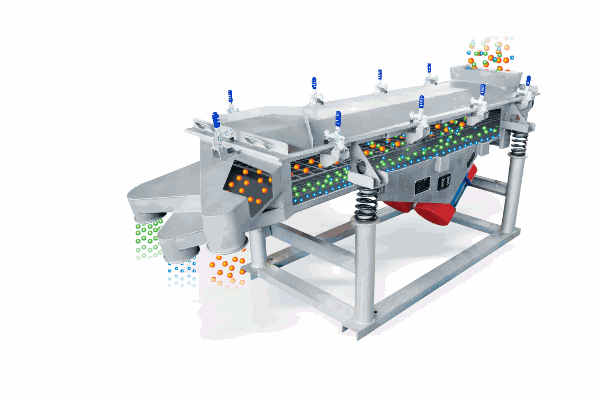

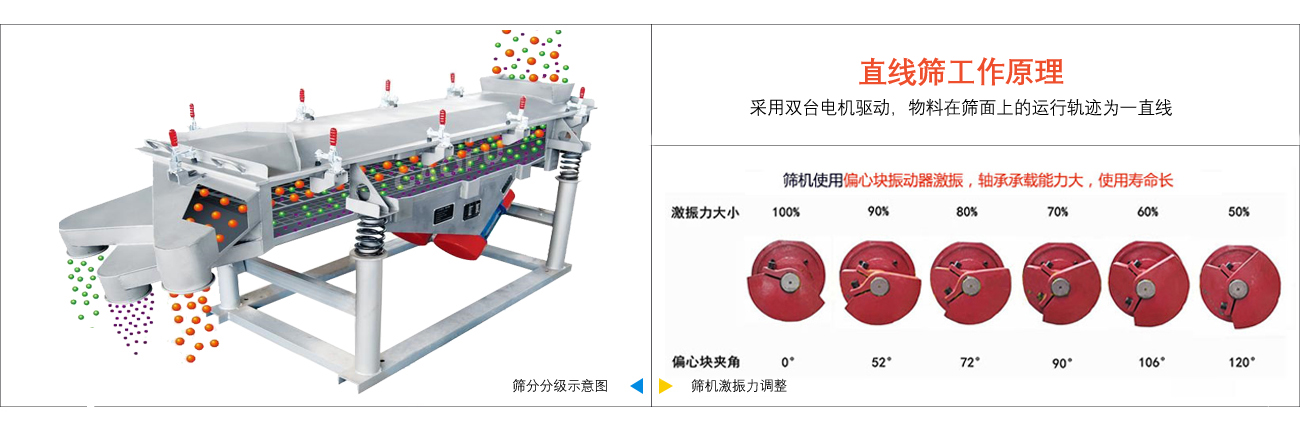

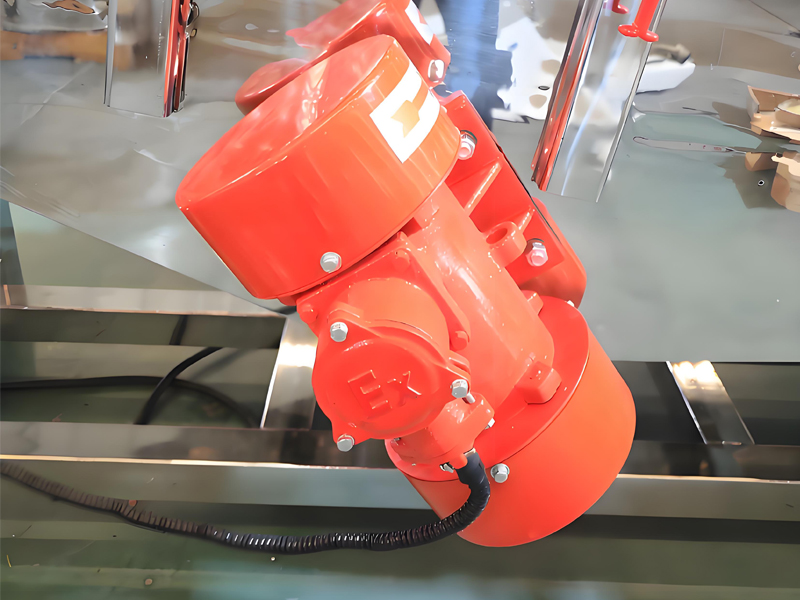

The stainless steel linear vibrating screen uses a vibration motor to excite as a vibration source. Under the combined force of the excitation force and the gravity of the material itself, the material is thrown up on the screen and moves forward in a straight line. The material enters the feeding port of the vibrating screen uniformly from the feeder, and produces different specifications of sieved and undersized materials through multiple layers of screens, which are then discharged from their respective outlets to achieve the purpose of screening.
Model | Nominal size（mm） | Material particle size（mm） | Slope inclination angle（°） | Amplitude（mm） | Number of layers（s） | Power（kw） |
XFZ520 | 500×2000 | 0.074～10 | 0°～7° | 4～8 | 1～5 | 2×(0.4～0.75) |
XFZ525 | 500×2500 | 2×(0.4～0.75) | ||||
XFZ530 | 500×3000 | 2×(0.75～1.1) | ||||
XFZ535 | 500×3500 | 2×(0.75～1.1) | ||||
XFZ1020 | 1000×2000 | 2×(0.75～1.5) | ||||
XFZ1025 | 1000×2500 | 2×(1.1～1.5) | ||||
XFZ1030 | 1000×3000 | 2×(1.5～1.8) | ||||
XFZ1035 | 1000×3500 | 2×(1.5～2.2) | ||||
XFZ1040 | 1000×4000 | 2×(1.5～2.2) | ||||
XFZ1225 | 1200×2500 | 2×(1.5～2.2) | ||||
XFZ1230 | 1200×3000 | 2×(1.8～3) | ||||
XFZ1235 | 1200×3500 | 2×(1.8～3) | ||||
XFZ1530 | 1500×3000 | 2×(2.2～3) | ||||
XFZ1535 | 1500×3500 | 2×(2.2～3) | ||||
XFZ1540 | 1500×4000 | 2×(2.2～4) |

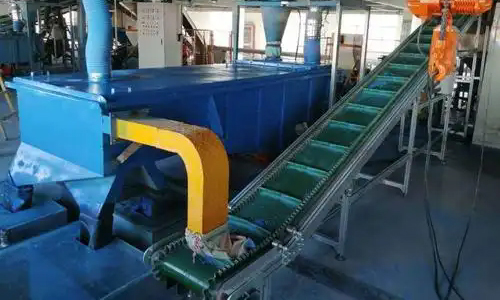

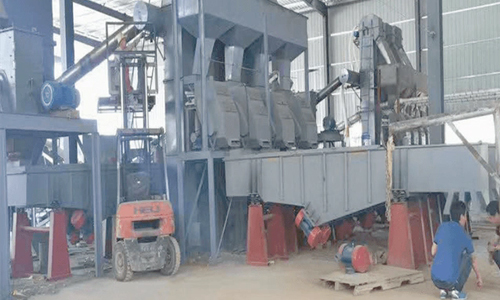

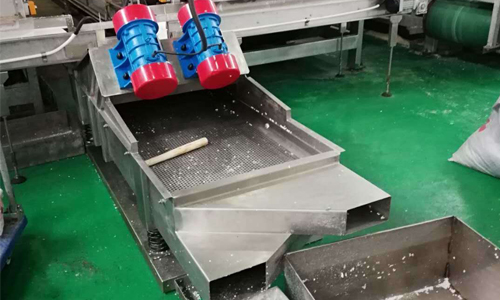

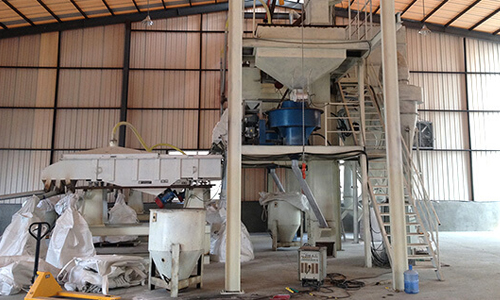

Stainless steel linear sieve can screen and grade powdery and granular materials, and is widely used in industries such as food, chemical, pharmaceutical, plastic, abrasive, building materials, grain, carbon, metallurgy, fertilizer, etc.
chemical fertilizer
Plastic particles
Rubber particles
EPDM rubber particles
Traditional Chinese Medicine Powder
Traditional Chinese Medicine Granules
Traditional Chinese Medicine Liquid
