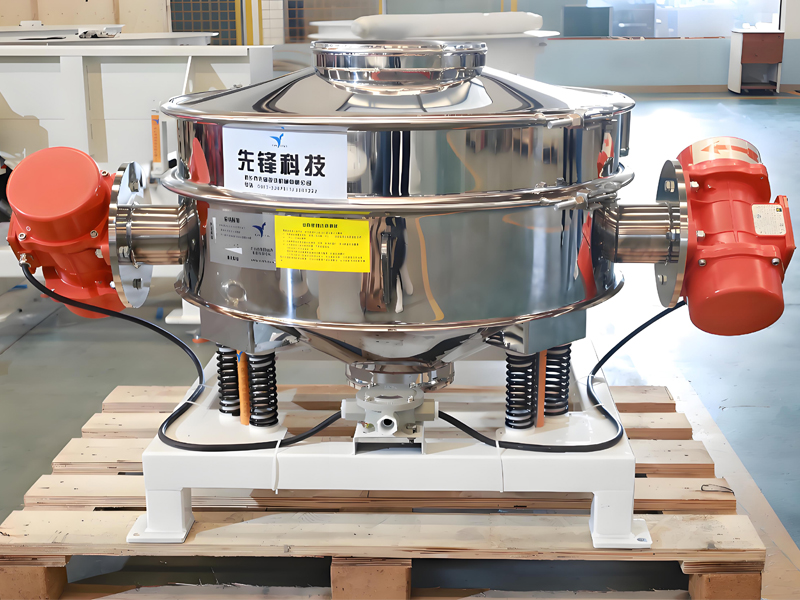

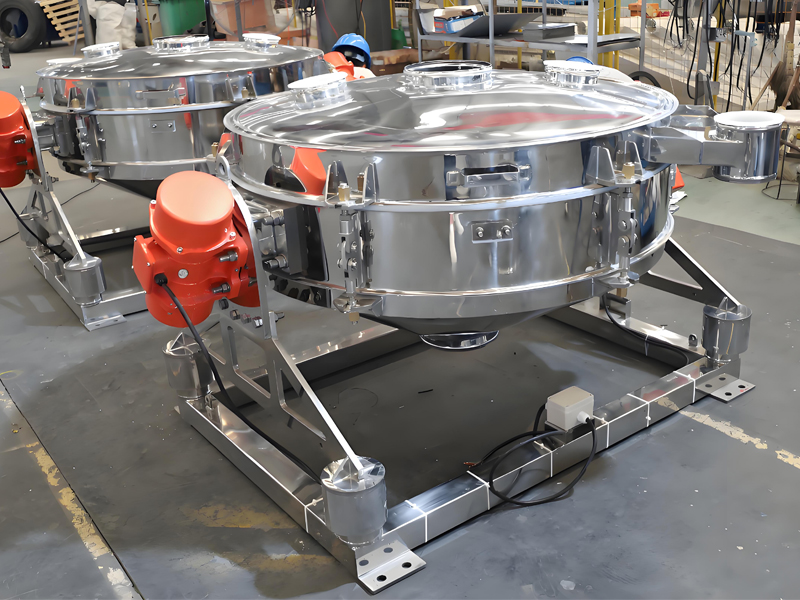

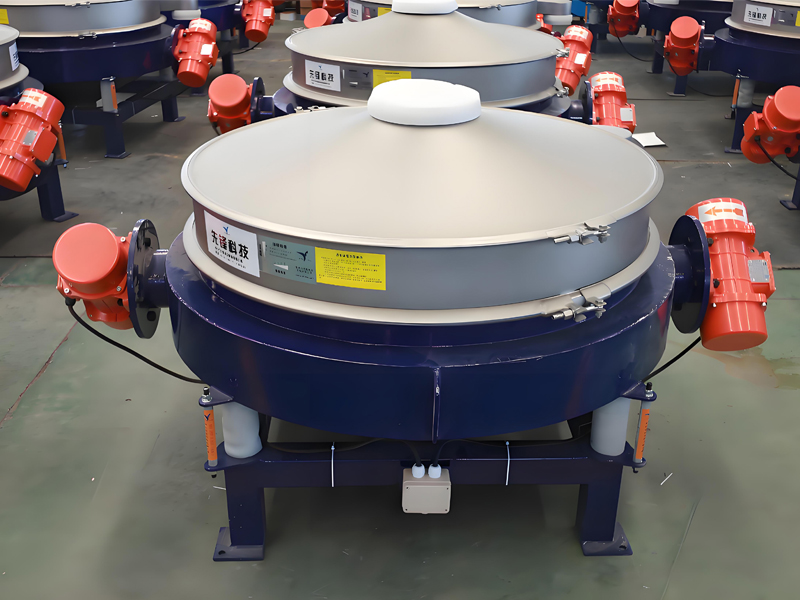

Stainless steel direct discharge vibrating screen, abbreviated as stainless steel direct discharge screen, has dual vibration sources that can generate vortex motion on the screen surface and has automatic discharge function. It is mainly used for impurity removal and screen loosening in the process flow of powder production lines.
Corrosion resistance: Made of stainless steel material, it has good corrosion resistance. It can resist corrosion from humid environments, acidic and alkaline media, and chemical substances, and is suitable for handling various corrosive materials.
High strength and durability: able to withstand large vibrations and workloads. It performs well in long-term, high-intensity screening work and has a long service life.

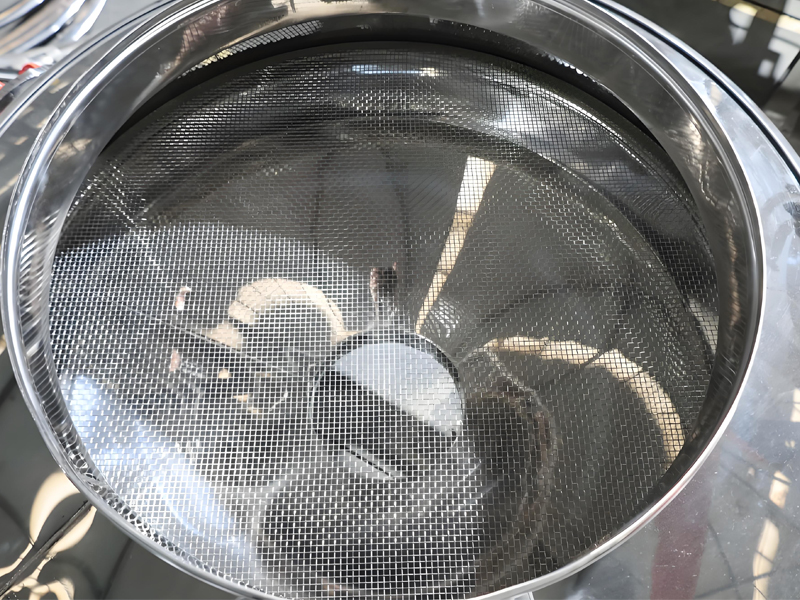

High screening accuracy: The sieve is made of fine stainless steel wire or metal plate, which can achieve high-precision screening. According to different sieve sizes, granular materials can be finely classified and screened to meet the fine screening needs of different industries.
Easy to clean and maintain: Stainless steel material has a smooth surface and good cleanliness, which is not easy to accumulate impurities and is convenient for cleaning and maintenance. This helps to maintain the smoothness and screening effect of the sieve, reducing downtime and maintenance costs.
Multi domain application: Widely used in the screening and grading of granular materials in industries such as food, chemical, pharmaceutical, mining, and metallurgy. It is suitable for materials with different particle size ranges, and can handle powdered, granular, and granular materials to meet the screening needs of different industries.
Hygiene and safety: comply with hygiene standards and food safety requirements. Stainless steel material is non-toxic and harmless, does not release harmful substances, and can be used in areas with high hygiene requirements in the food and pharmaceutical industries.

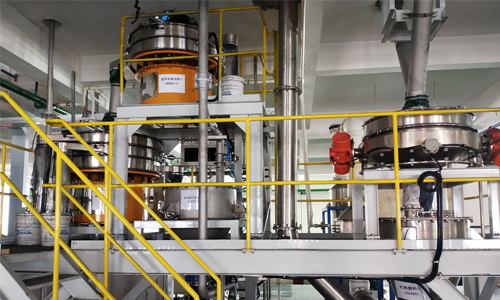

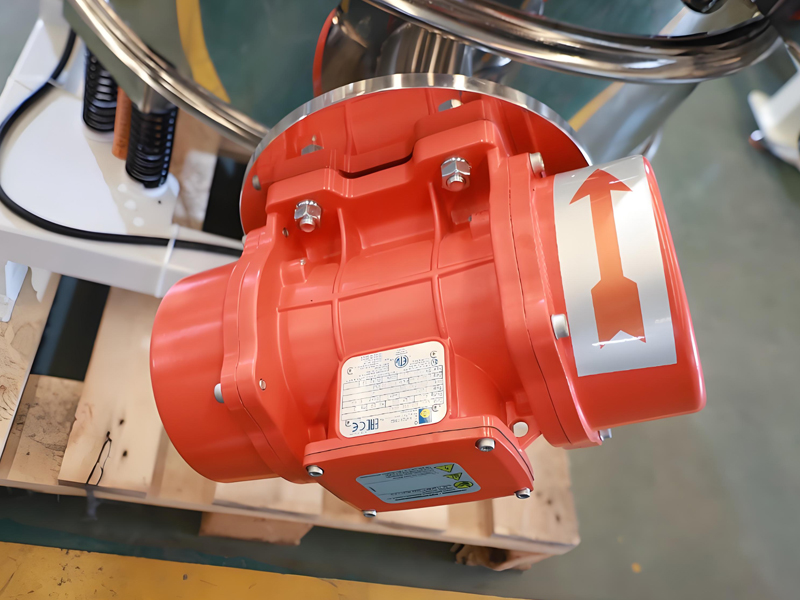

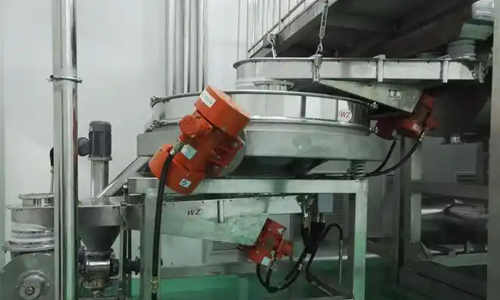

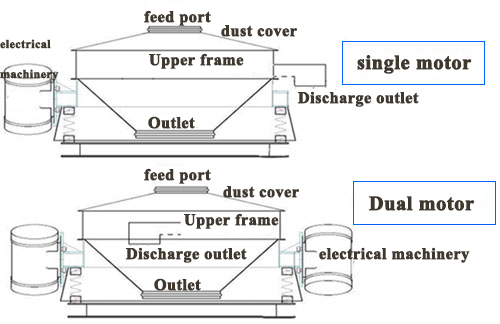

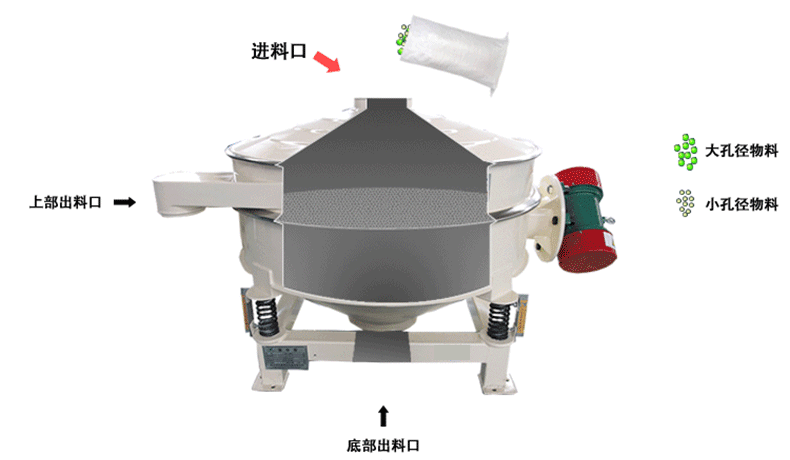

The direct screening uses a high-frequency vibration motor as the excitation source. After the material enters the system, it undergoes three-dimensional rotational motion on the screen surface under the force of the vibration source. The flour and clumps are fully dispersed and quickly pass through the mesh, directly entering the lower surface bin. Impurities and foreign objects are separated and discharged to the slag discharge outlet, serving as the "safety officer" on the production line.

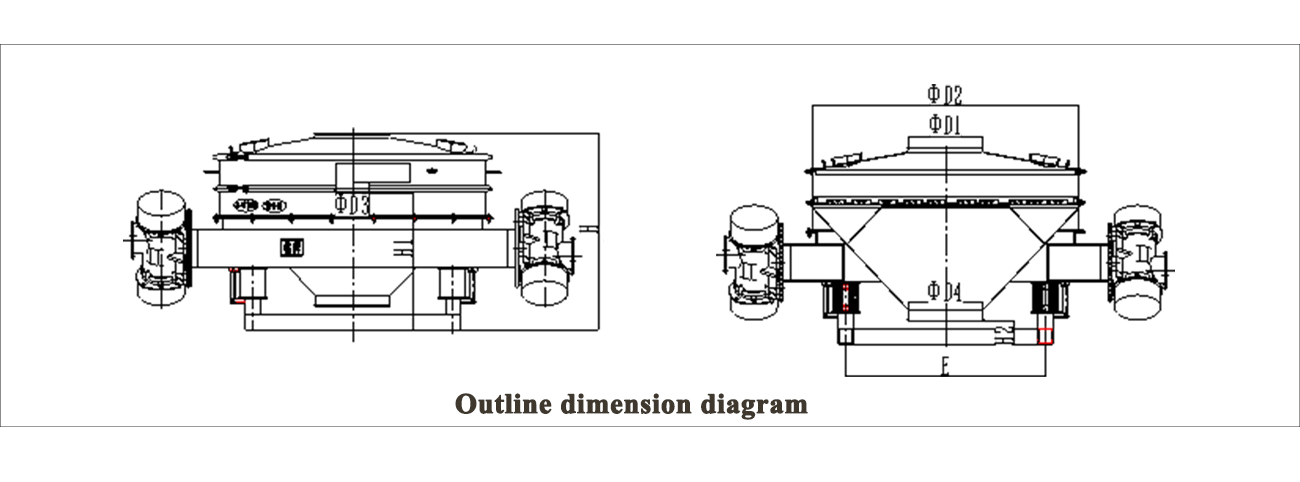

Model | Power | motor speed | Screen diameter | External dimensions |
XFZP-600 | 2×0.18 | 1460 | Φ560 | 1150×600×550 |
XFZP-800 | 2×0.18 | 1460 | Φ760 | 1360×800×600 |
XFZP-1000 | 2×0.25 | 1460 | Φ930 | 1600×1000×700 |
XFZP-1200 | 2×0.55 | 1460 | Φ1160 | 2000×1200×900 |
XFZP-1500 | 2×0.75 | 1460 | Φ1430 | 2350×1500×1000 |
Flour, starch, milk powder, additives, carbon black (white carbon black), quartz powder (sand), mica, fluorescent powder, feldspar powder, kaolin, silica soil, fly ash, glass beads, environmental protection, plastics, plastics, magnetic materials, building materials, mines, kilns, feeds, condiments, fish powder, Rice noodles, flour, soybean powder, milk powder, egg powder, starch, granulated sugar, fruit juice, western medicine powder, Chinese medicine powder, pharmaceutical intermediates, pearl powder, soda ash, polyethylene, resin powder (PVC, epoxy), washing powder, additives, paint, dye, pigment, rubber, paint, alloy powder, gold powder, silver powder, copper powder, aluminum powder, Nickel powder, chromium powder, magnesium powder, zinc powder, barium powder, vanadium powder, titanium powder, strontium powder, lead powder, casting sand, etc.
