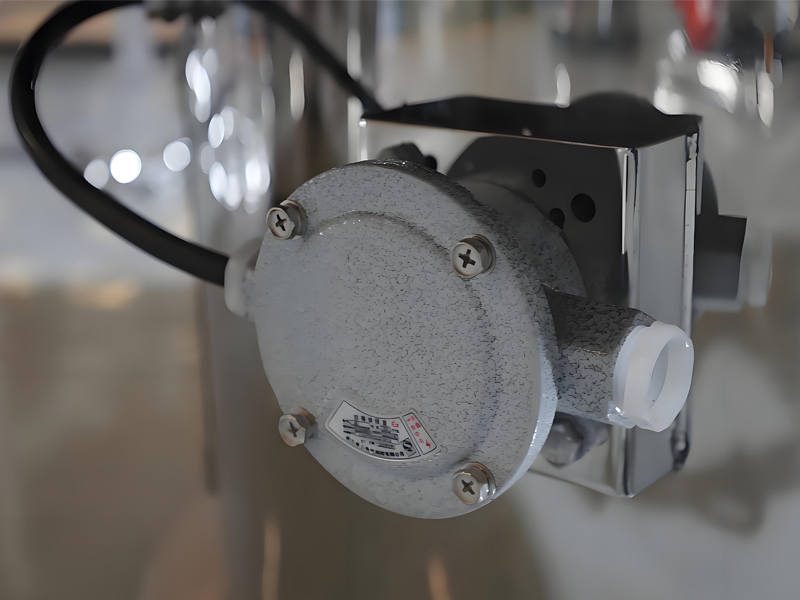

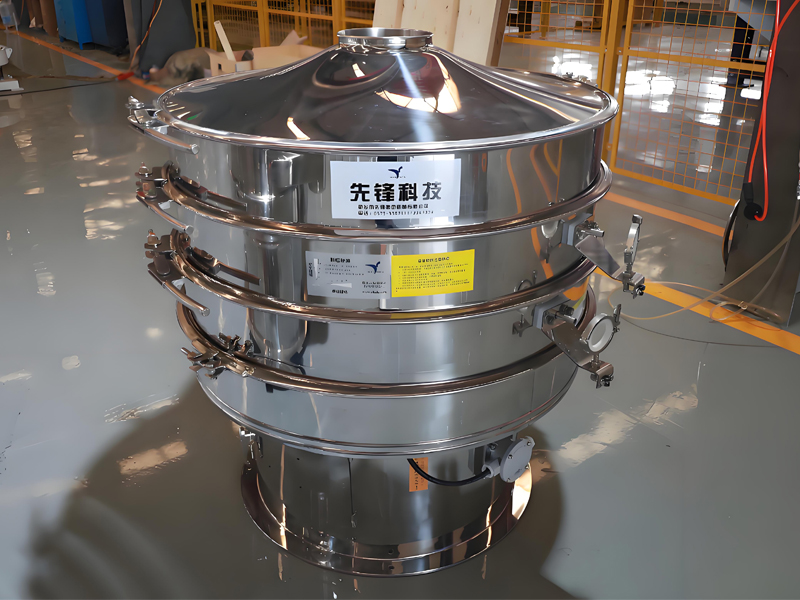

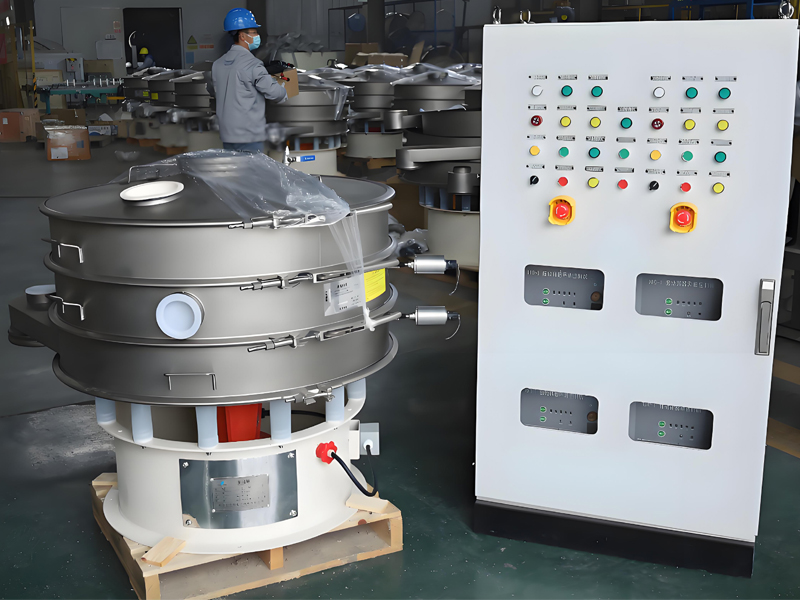

Explosion proof ultrasonic vibrating screen is a screening equipment, and the inlet and outlet should be connected to a closed container with a protection level of not less than IP6 *, so that the material will not escape to the outside. The non-metallic components used in this device have a surface resistance not exceeding ≤ 109 Ω.
Any particle, powder, or mucus can be screened within a certain range.
Sieve fine to 600 mesh or 0.02mm, filter as small as 5 microns.

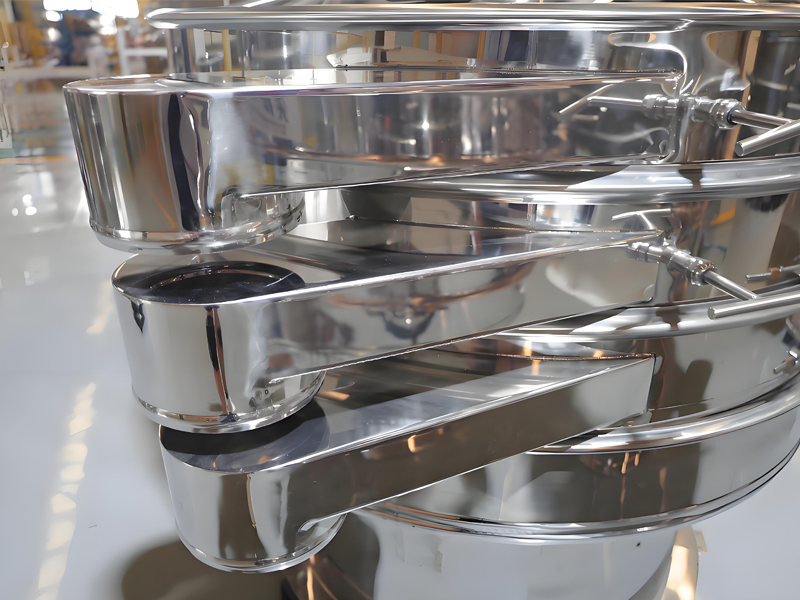

Graded screening, capable of screening one to five layers of sieves, and can simultaneously perform sorting or filtering of two to six levels.
High efficiency, exquisite and durable design, easy screen replacement, simple operation, and convenient cleaning.
The rotary vibrating screen automatically discharges impurities and coarse materials, and can operate continuously.

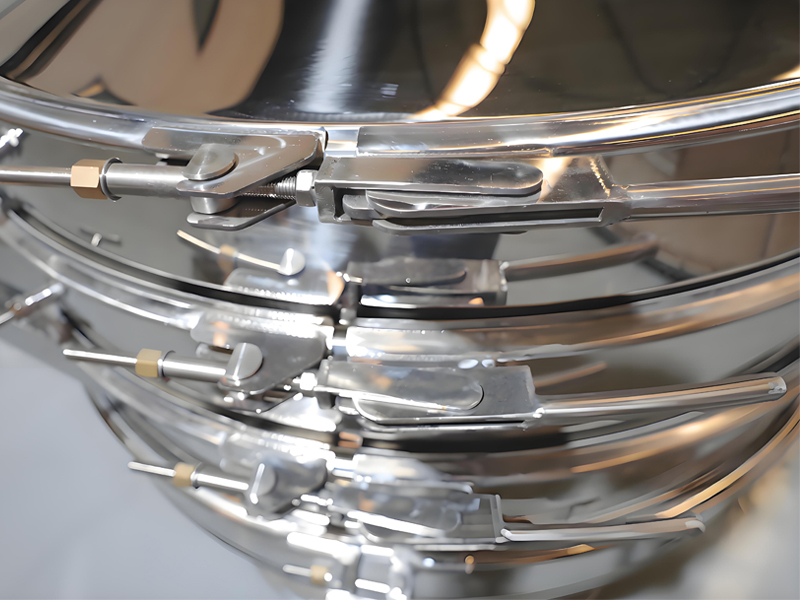

Grid design, the screen mesh has a long service life and can be replaced quickly, taking only 3-5 minutes. Small size, space saving, and easy to move.

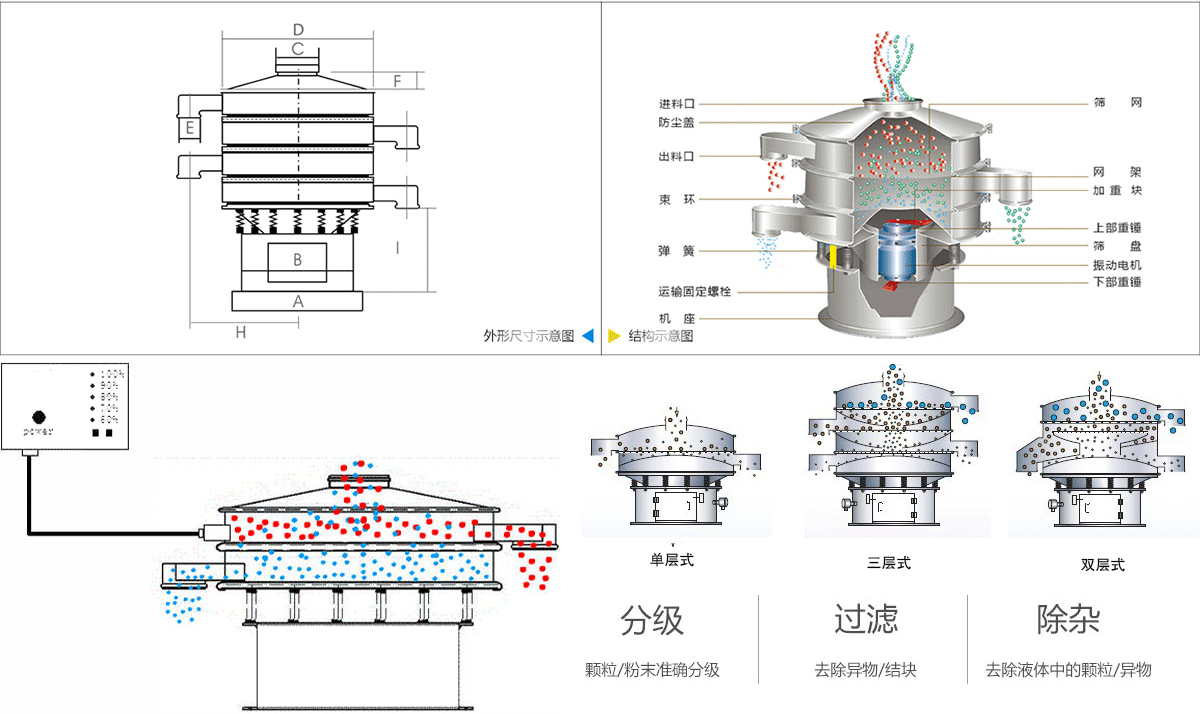

Explosion proof ultrasonic vibrating screen is driven by a vertical vibration motor as the exciter. Eccentric heavy hammers are installed at the upper and lower ends of the vibration motor to convert its rotational motion into horizontal, vertical, and inclined three-dimensional motion, which is then transmitted to the screen surface. Adjusting the phase angle between the upper and lower ends can change the motion trajectory of the material on the screen surface.
Table of Appearance and Dimensional Parameters：
Model | φD1(mm) | φD2(mm) | φD3(mm) | R(mm) | H(mm) | H1(mm) | φ1(mm) | φ2(mm) | Foot hole(mm) |
XFCFB-600 | 246 | 560 | 100 | 427 | 988 | 390 | 636 | 586 | 3-φ12.5 |
XFCFB-800 | 246 | 760 | 150 | 560 | 1200 | 480 | 680 | 630 | 6-φ12.5 |
XFCFB-1000 | 246 | 930 | 150 | 645 | 1280 | 556 | 800 | 750 | 6-φ12.5 |
XFCFB-1200 | 400 | 1130 | 180 | 747 | 1400 | 560 | 980 | 920 | 6-φ12.5 |
XFCFB-1500 | 400 | 1430 | 180 | 900 | 1460 | 580 | 1190 | 1120 | 6-φ12.5 |
Technical parameter table：
Model | Nominal diameter of sieve surface(mm) | Screen surface area(m2) | Mesh size (mesh/inch) | Number of layers(s) | power(kW) | Explosion proof mark of motor | Electromotor |
XFCFB-600 | 560 | 0.23 | 2～500 | 1～5 | 0.25 | Ex d IIB T4 Gb或Ex tb IIIC T130°C Db | YBZL-1005-4 |
XFCFB-800 | 760 | 0.42 | 0.37 | YBZL-1208-4 | |||
XFCFB-1000 | 930 | 0.64 | 1.1 | YBZL-1420-4 | |||
XFCFB-1200 | 1130 | 0.95 | 1.1 | ||||
XFCFB-1500 | 1430 | 1.61 | 1.5 | YBZL-1630-4 |

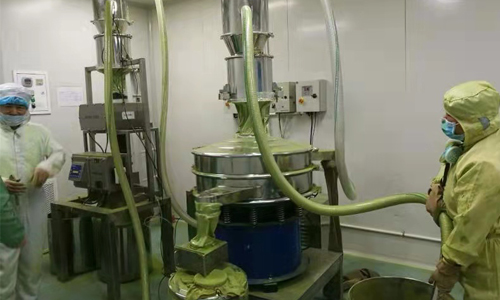

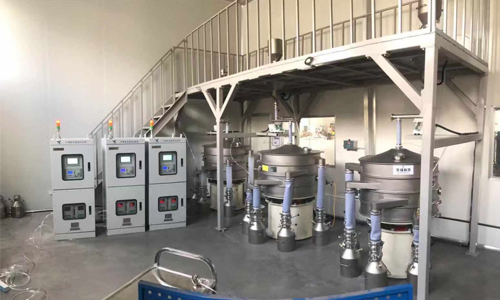

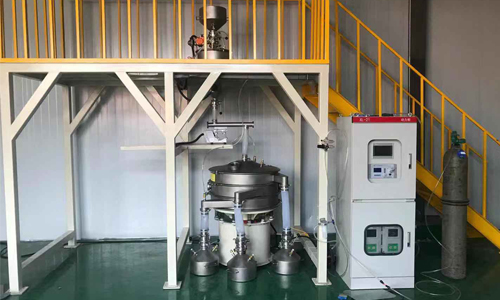

Explosion proof ultrasonic vibrating screens are widely used in industries such as food, pharmaceuticals, chemicals, abrasive ceramics, metal powders, battery materials, papermaking, metallurgy, etc., for materials such as powders, particles, and mucous.
