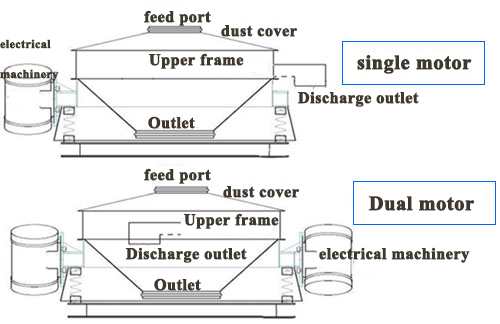

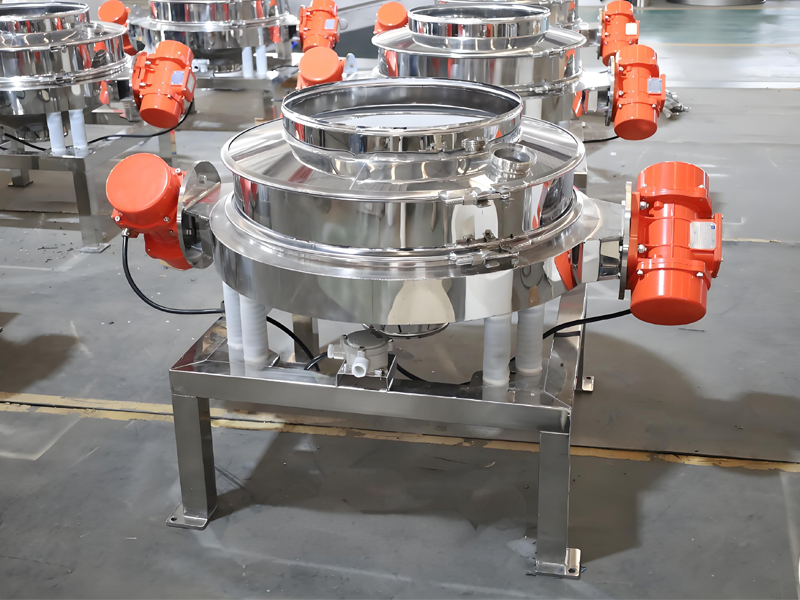

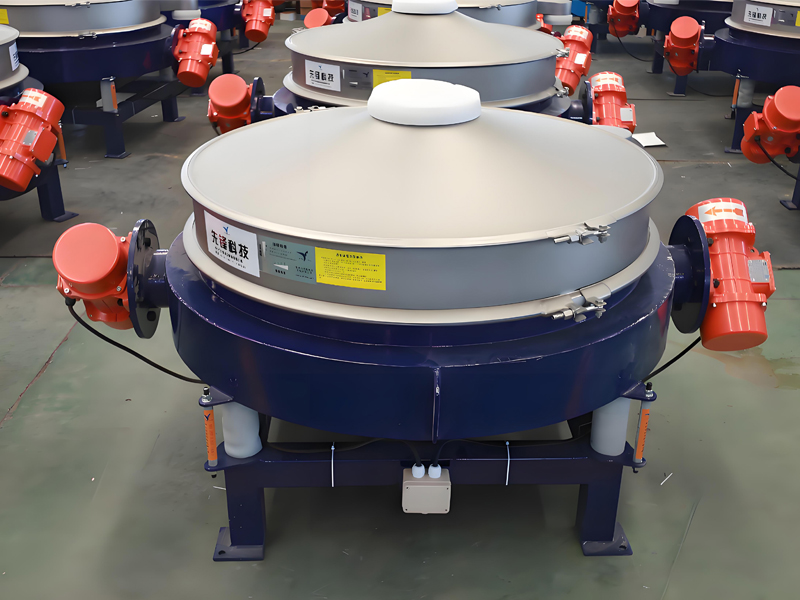

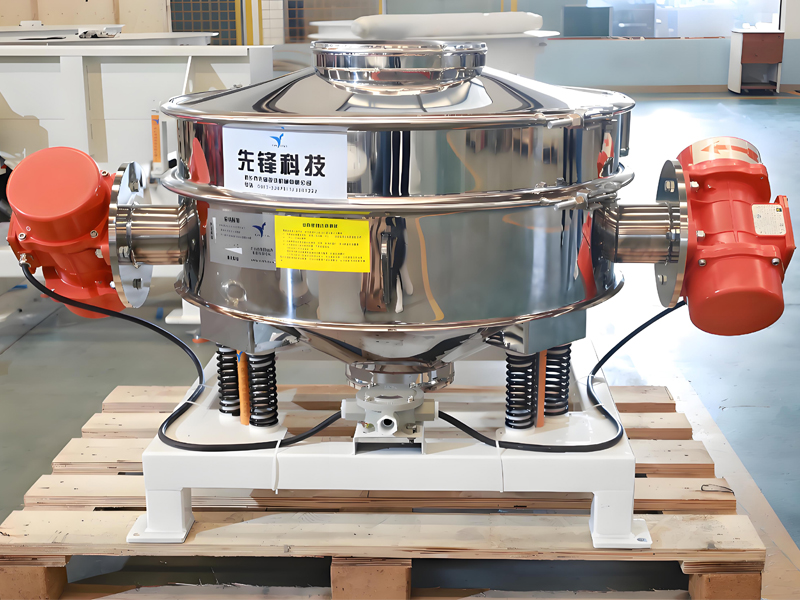

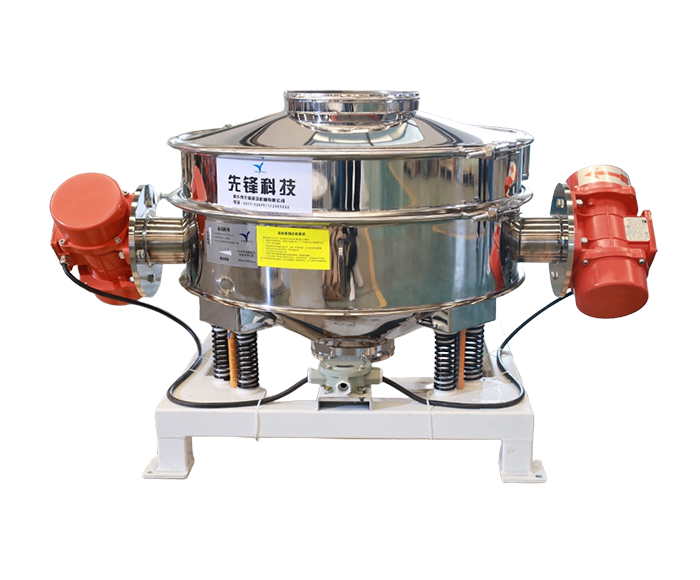

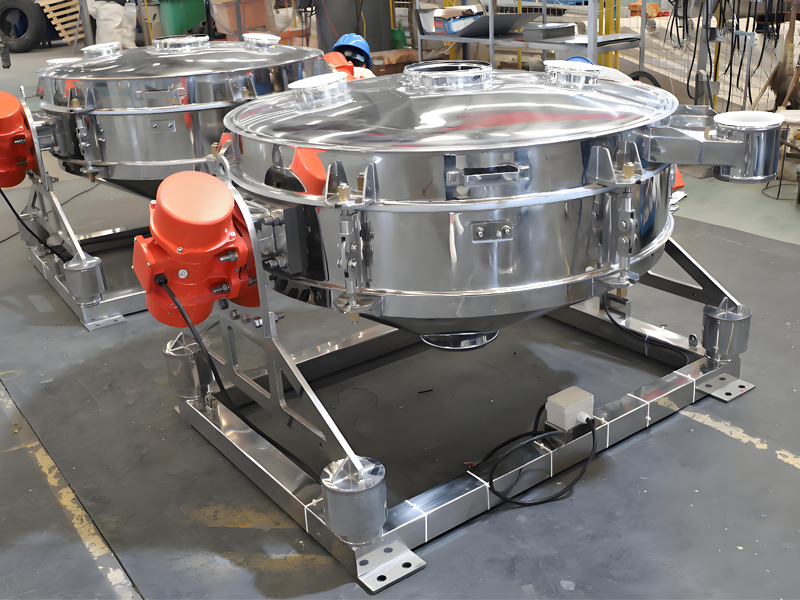

The direct screening uses a vibration motor to utilize the phase angle of two sets of eccentric blocks (unbalanced eccentric blocks) at the upper and lower ends of its shaft, as well as the intersection angle between the two motors, to transform the rotational motion of the vibration motor into multiple overlapping forces of horizontal, vertical, inclined, and centrifugal effects. These forces are then transmitted to the screening surface to achieve the purpose of screening. Changing the phase angle and weight of the upper and lower eccentric blocks can alter the magnitude of the excitation force and the trajectory of the material's movement.
Small in size, space saving, and easy to move.
Low energy consumption and high efficiency.
Easy to disassemble and assemble, easy to clean both inside and outside, no hygiene dead corners, in compliance with food grade GMP standards.
Automated operation, capable of 24-hour continuous production
Ultra low noise design.Strict sealing, no liquid leakage, and no dust flying.
Can be used in single or multiple layers, with multiple levels of filtering at once

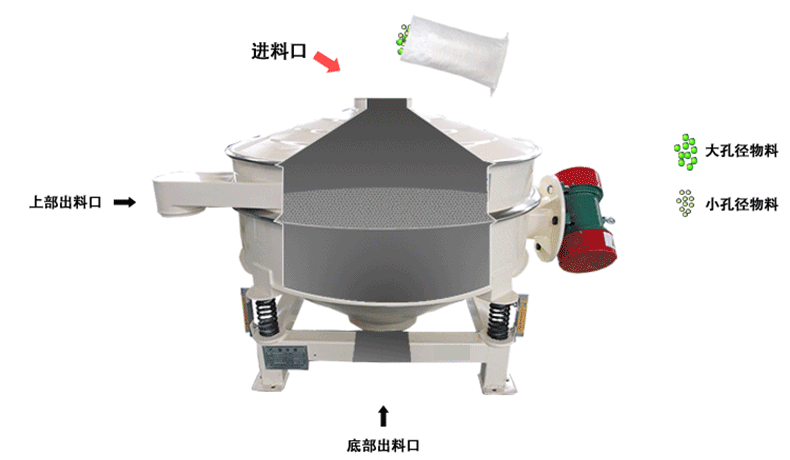

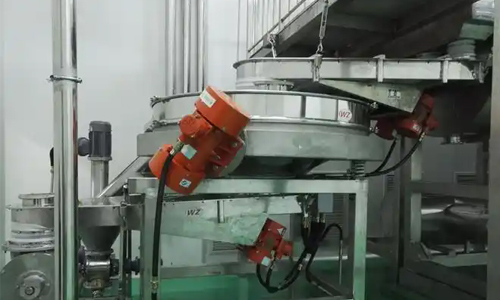

The direct screening uses a high-frequency vibration motor as the excitation source. After the material enters the system, it undergoes three-dimensional rotational motion on the screen surface under the force of the vibration source. The flour and clumps are fully dispersed and quickly pass through the mesh, directly entering the lower surface bin. Impurities and foreign objects are separated and discharged to the slag discharge outlet, serving as the "safety officer" on the production line.

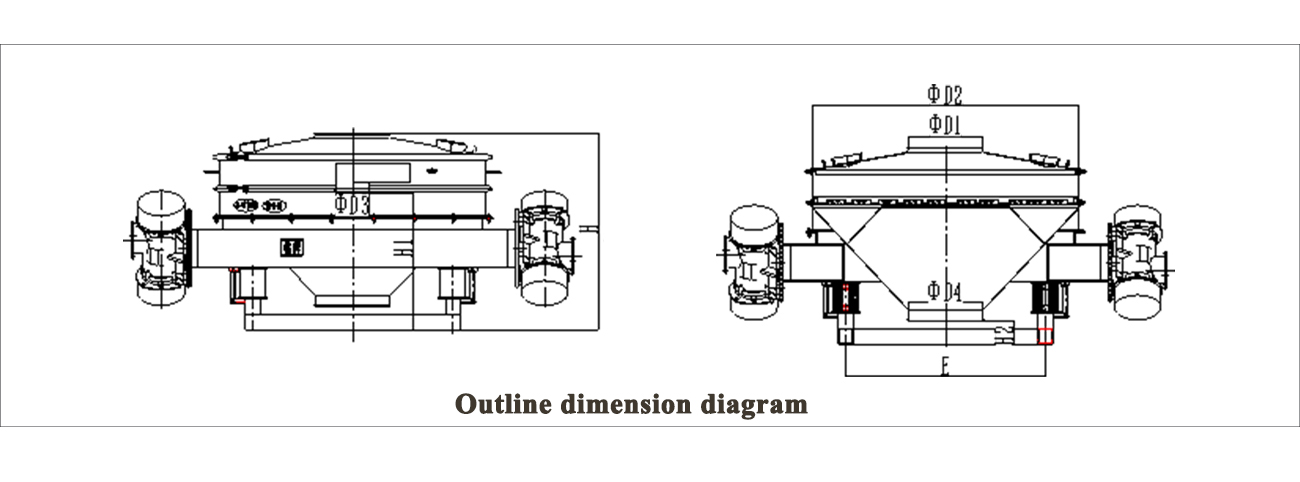

Model | Power | motor speed | Screen diameter | External dimensions |
XFZP-600 | 2×0.18 | 1460 | Φ560 | 1150×600×550 |
XFZP-800 | 2×0.18 | 1460 | Φ760 | 1360×800×600 |
XFZP-1000 | 2×0.25 | 1460 | Φ930 | 1600×1000×700 |
XFZP-1200 | 2×0.55 | 1460 | Φ1160 | 2000×1200×900 |
XFZP-1500 | 2×0.75 | 1460 | Φ1430 | 2350×1500×1000 |
Flour, starch, milk powder, additives, carbon black (white carbon black), quartz powder (sand), mica, fluorescent powder, feldspar powder, kaolin, silica soil, fly ash, glass beads, environmental protection, plastics, plastics, magnetic materials, building materials, mines, kilns, feeds, condiments, fish powder, Rice noodles, flour, soybean powder, milk powder, egg powder, starch, granulated sugar, fruit juice, western medicine powder, Chinese medicine powder, pharmaceutical intermediates, pearl powder, soda ash, polyethylene, resin powder (PVC, epoxy), washing powder, additives, paint, dye, pigment, rubber, paint, alloy powder, gold powder, silver powder, copper powder, aluminum powder, Nickel powder, chromium powder, magnesium powder, zinc powder, barium powder, vanadium powder, titanium powder, strontium powder, lead powder, casting sand, etc.
