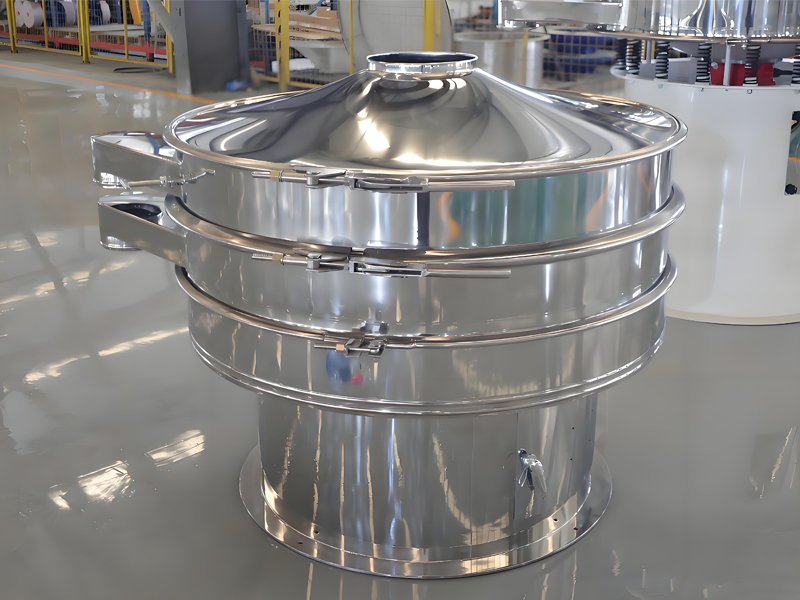

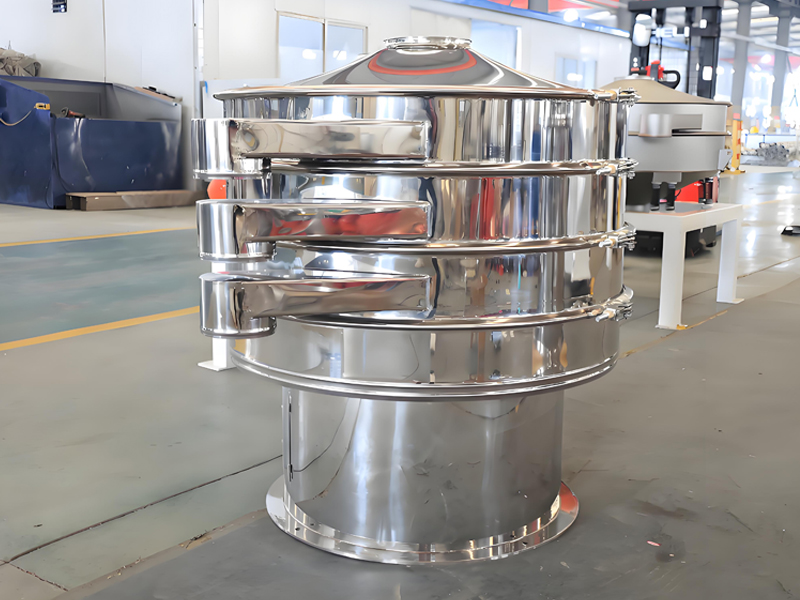

Stainless steel vibrating screen is designed specifically for industries such as food, medicine, chemical, etc. It is used for impurity removal, grading, solid-liquid separation, and other purposes. It is made of 304 stainless steel or 316L stainless steel, and both the inside and outside of the machine have been polished. There are no welding seams, and the cleanliness is high, easy to clean, and can ensure that materials are not contaminated during the screening process, meeting the hygiene requirements of the food and pharmaceutical industries.

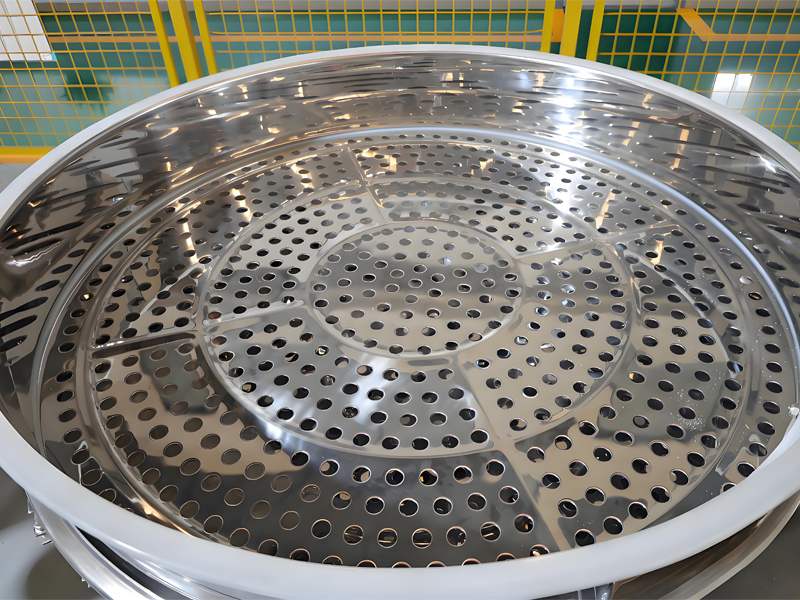

Sift to 500 mesh or 0.028mm, the finished particle shape is uniform, and adding bouncing balls made of silicone can effectively prevent sieve hole blockage, improve screening accuracy and yield.

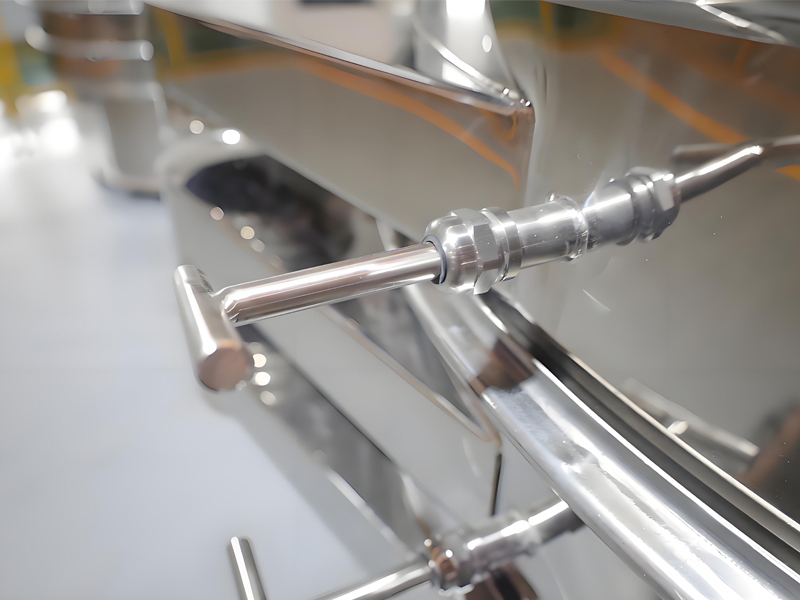

Made of 304 or 316 stainless steel, with internal and external mirror polishing, surface finish of 0.1-0.2 RA, ensuring no material deposition, less likely to contaminate raw materials, and easier to clean.
Avoid chemical reactions with acidic and alkaline materials, and be able to resist high temperatures up to 200 degrees Celsius.
The fully enclosed structure eliminates the problem of dust in the air and avoids any opportunity for cross contamination between batches.

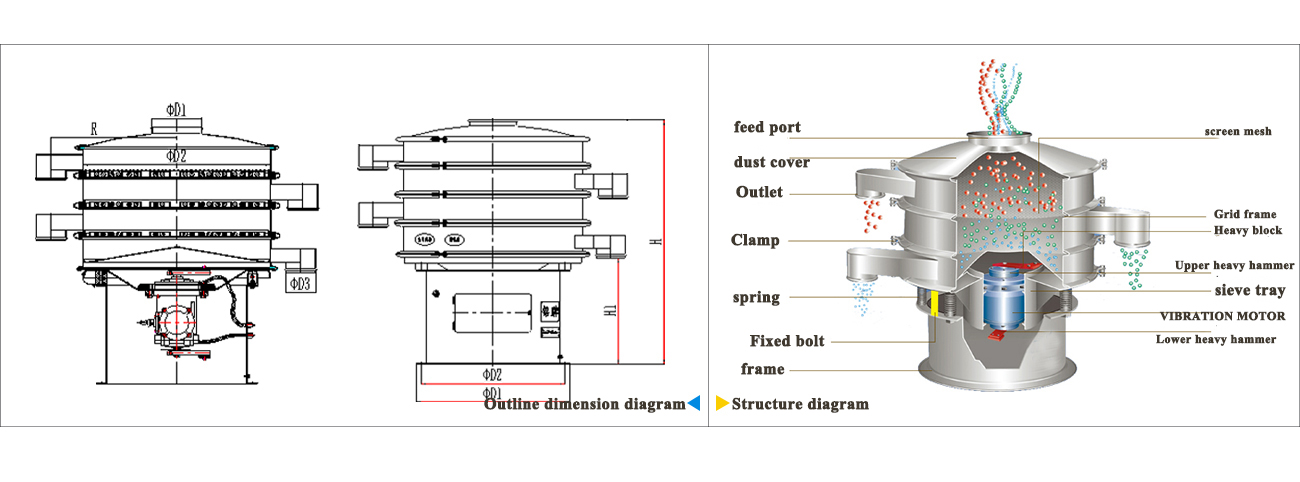

Principle of stainless steel vibrating screen: The basic principle is to use an upright vibrating motor as the excitation source. Eccentric heavy hammers are installed at the upper and lower ends of the motor to convert its rotational motion into horizontal, vertical, and inclined three-dimensional motion, which is then transmitted to the screen surface. Adjusting the phase angle between the upper and lower ends can change the motion trajectory of the material on the screen surface.
Equipment parameters:
Model | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | H(mm) | I(mm) |
XF-600 | 530 | 430 | 246 | 600 | 100 | 70 | 391 | 415 |
XF-800 | 680 | 580 | 246 | 800 | 125 | 80 | 514 | 430 |
XF-1000 | 800 | 700 | 246 | 1000 | 150 | 95 | 615 | 430 |
XF-1200 | 975 | 855 | 400 | 1200 | 180 | 100 | 717 | 550 |
XF-1500 | 1190 | 1050 | 400 | 1500 | 180 | 116 | 866 | 545 |
XF-1800 | 1580 | 1440 | 400 | 1800 | 200 | 150 | 1070 | 675 |
XF-2000 | 1800 | 1640 | 400 | 2000 | 200 | 190 | 1210 | 685 |
Table of Appearance and Dimensional Parameters:
Model | Sieving diameter(mm) | Screening area(m²) | Mesh size (mesh/inch) | Number of layers (s) |
XF-600 | φ560 | 0.23 | 2-500 | 1-5 |
XF-800 | φ760 | 0.42 | 1-5 | |
XF-1000 | φ930 | 0.64 | 1-5 | |
XF-1200 | φ1130 | 0.95 | 1-5 | |
XF-1500 | φ1430 | 1.61 | 1-5 | |
XF-1800 | φ1730 | 2.35 | 1-5 | |
XF-2000 | φ1920 | 2.9 | 1-5 |
Applications：
Stainless steel vibrating screen is designed for screening materials with high hygiene standards, such as food and medicine, as well as materials with acid and alkali corrosiveness, such as pharmaceuticals and chemicals.
Food industry: The hygiene standards required by the food industry are very high. The whole machine is made of 304 or 316 stainless steel, and any impurities are not allowed to contaminate the parts in contact with the material. The sealing components of the stainless steel vibrating screen comply with food hygiene standards.
Applicable materials: flour, pineapple juice, sesame, coffee, spices, beans, edible oil, etc.
Pharmaceutical industry: The pharmaceutical industry has very strict requirements for material screening. It must be stainless steel 304 or even 316. The equipment must be cleaned several times with alcohol before leaving the factory, and the inside and outside of the whole machine must be polished without black spots or burrs.
Applicable materials: Pharmaceutical raw materials with strict hygiene requirements, such as powder, capsules, microspheres, granules, active pharmaceutical ingredients, tablets, and drug residues.
Chemical industry: In the chemical industry, there are not only some materials with weak acidity, but also some materials with strong alkalinity. For materials with weak acidity or alkalinity, stainless steel can be used. For materials with strong acid and alkali, it is recommended to use plastic materials.
Applicable materials: fertilizers, urea, resin powder, fluorescent powder, etc.
Pollution treatment: easy to wipe, does not breed bacteria, and is corrosion-resistant. Example: Some breeding farms can filter and remove impurities from the wastewater of chicken, pig, rabbit, cow and other breeding farms.
Applicable materials: industrial wastewater, domestic sewage, calcium hydroxide slurry, etc.
