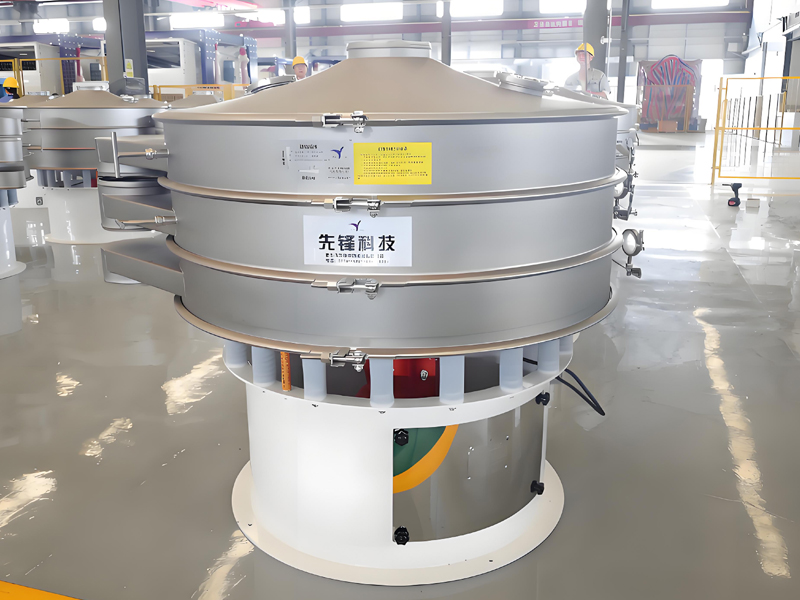

Ultrasonic vibrating screen uses ultrasonic frequency to vibrate the screen mesh, with a vibration frequency of up to 36000 times per second. It can make fine powder materials form a micro suspension state on the screen mesh, which can pass through the screen mesh faster without generating static electricity and sticking to the screen mesh. The screening accuracy can be improved by more than 80%, and the yield can be increased by 2-5 times.
Use ultrasonic frequency vibration screen to prevent clogging and allow separation accuracy as low as 20 μ m (# 635 mesh).
Ultrasonic screening can make the powder pass through the sieve holes faster, improve the penetration efficiency of the sieve, and thus increase the screening capacity by 10 times.

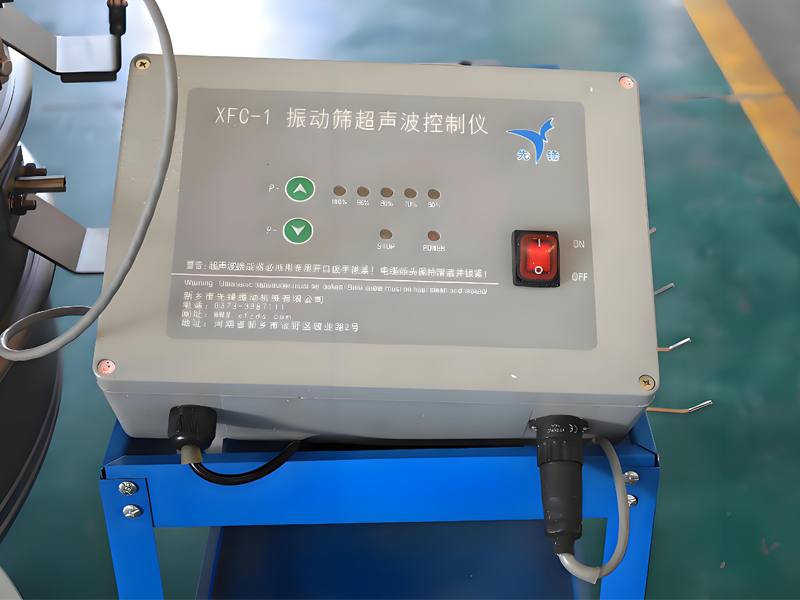

The power supply can be automatically adjusted between 18K-40K and can be converted from low frequency to high frequency according to the specific gravity of the material. The transducer can work continuously for 12-24 hours.
Preventing screen overload can not only reduce production downtime, but also reduce the time required to clean the screen.
No need to use a bouncing ball cleaning device to prevent secondary pollution caused by rubber wear.

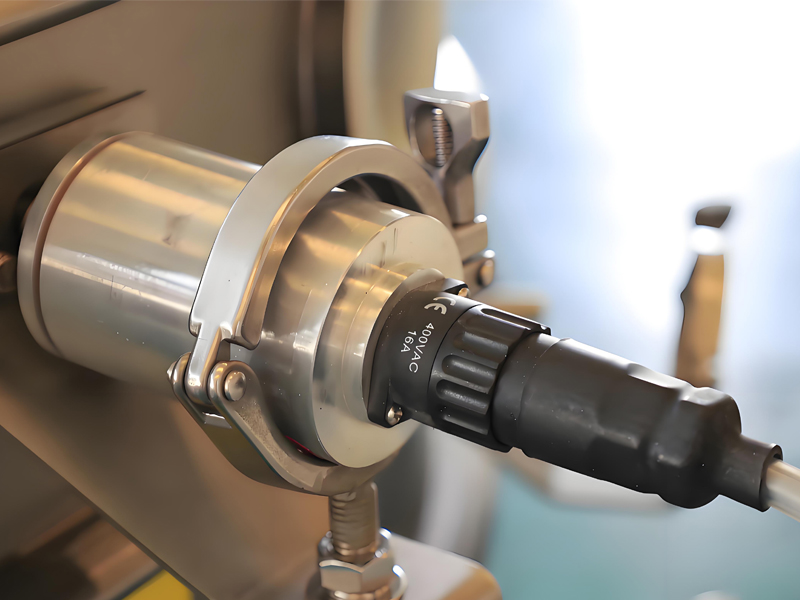

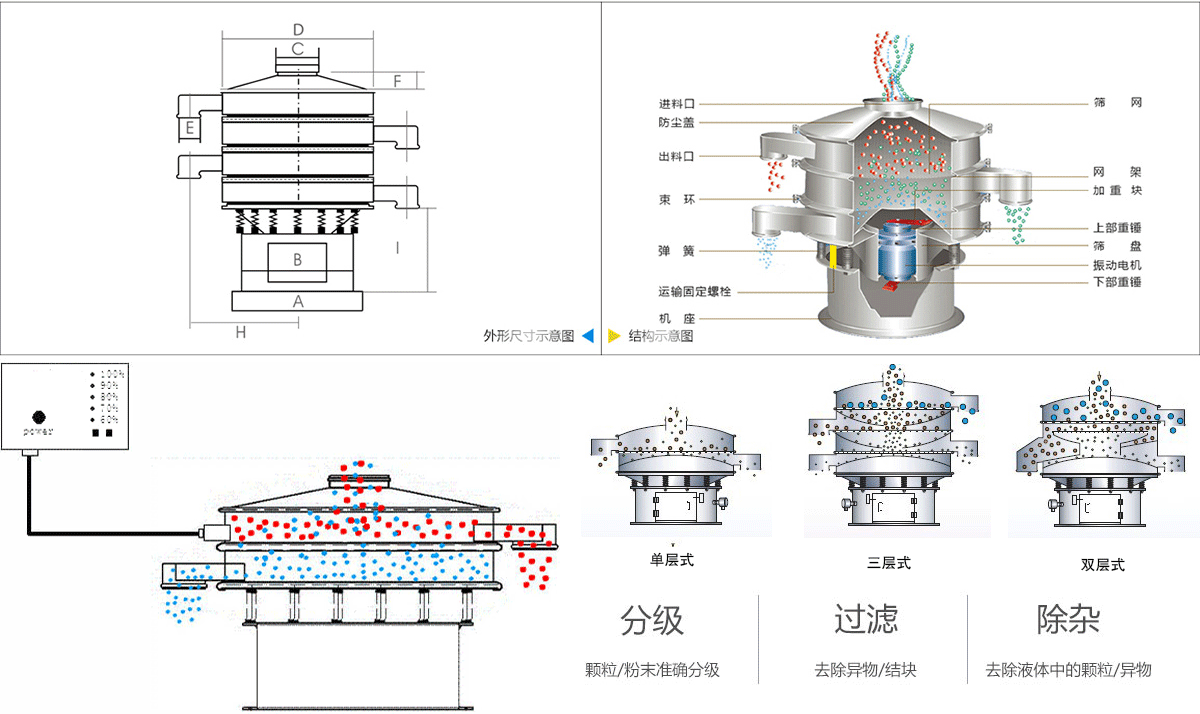

Ultrasonic vibrating screen converts 220V, 50Hz or 110V, 60Hz electrical energy into high-frequency electrical energy such as 18KHz, which is input into an ultrasonic transducer and converted into mechanical vibration such as 18KHz, in order to achieve the purpose of screening and cleaning the mesh. It eliminates the problems caused by static electricity and powder agglomeration on the sieve holes, and does not change the characteristics of the screened material.
The frequency converter is a device that changes the vibration frequency of a regular screening machine, increasing the vibration frequency of the material in the same unit time, thereby increasing the number of times the material passes through the screening holes at the same time, making the screening machine more efficient, refined, and applicable in a wider range.
Model | Sieving diameter （mm） | Screening area （㎡） | Mesh size (mesh/inch) | Number of layers （s） | VIBRATION MOTOR （kW） | Ordinary motor （kW） |
XFC-600 | Φ560 | 0.25 | 2-500 | 1-5 | 0.25 | 0.75 |
XFC-800 | Φ760 | 0.45 | 1-5 | 0.55 | 1.1 | |
XFC-1000 | Φ930 | 0.68 | 1-5 | 1.1 | 1.5 | |
XFC-1200 | Φ1130 | 1 | 1-5 | 1.1 | 1.5 | |
XFC-1500 | Φ1430 | 1.61 | 1-4 | 1.5 | 2.2 | |
XFC-1800 | Φ1730 | 2.35 | 1-3 | 2.2 | 3 | |
XFC-2000 | Φ1920 | 2.9 | 1-3 | 2.2 | 3 |

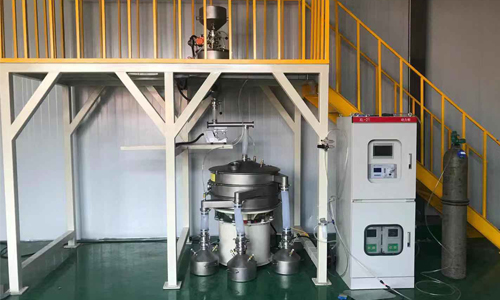

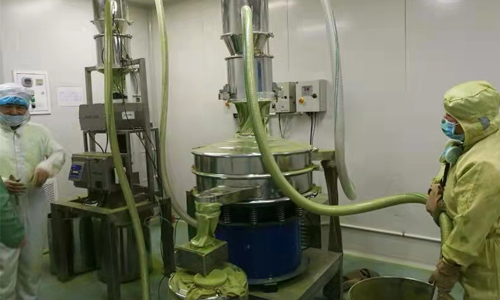

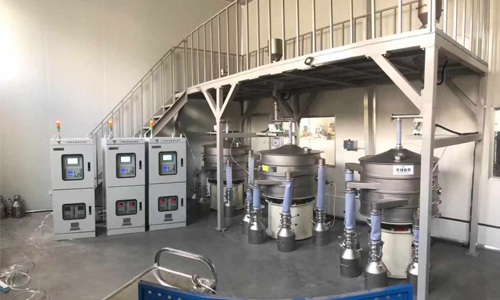

Application scope: battery materials, silicon powder, food industry, pharmaceutical industry, chemical industry, metal, metallurgical mining, non-metallic industry, other industries, etc
Application materials: lithium iron phosphate, ternary materials, nickel cobalt manganese oxide, nickel cobalt aluminum oxide, lithium manganese oxide, lithium cobalt oxide, lithium hexafluorophosphate, graphite, electrode recycling, metal microsilica powder, crystalline silicon powder, molten silicon powder, spherical silicon powder, spherical silicon dioxide, Chinese and Western raw materials, Western medicine, coffee powder, cocoa powder, seasoning, food additives, metal powder, copper, iron, aluminum, lead, zinc, alloy powder, magnetic materials, metal powder, alumina, corundum, diamond sand, quartz sand glass powder beads, grinding materials, plastics, rubber, resins, dyes, fillers, chemical chemistry, activated carbon, wood powder, sawdust, charcoal, fiber materials
Model | Testing materials | Mesh size | Vibrating screen | Ultrasonic vibrating screen |
⌀1000 | Silicon carbide | 500mesh | Cannot be sieved | 1500kg/h |
Ф1000 | Tungsten powder | 600mesh | 15 minutes without sieving fine powder | 30kg/h |
Ф1000 | Vitamin C powder | 100mesh | 1kg/h | 120-150kg/h |
Ф600 | Pollen | 400mesh | 15 minutes without sieving fine powde | 15 minute screening |
Ф1000 | Cobalt powder | 400mesh | 10kg/h | 300kg/h |
Ф1000 | Neodymium iron boron powder | 300mesh | 32.2% sieve residue for 30 minutes | Screen out 6.9% residue in 30 minutes |
Ф1000 | Steel sand powder | 300mesh | Cannot be sieved | 1300kg/h |
Ф1200 | Antimony Trioxide | 80 mesh | 700kg/h | 2000kg/h |
