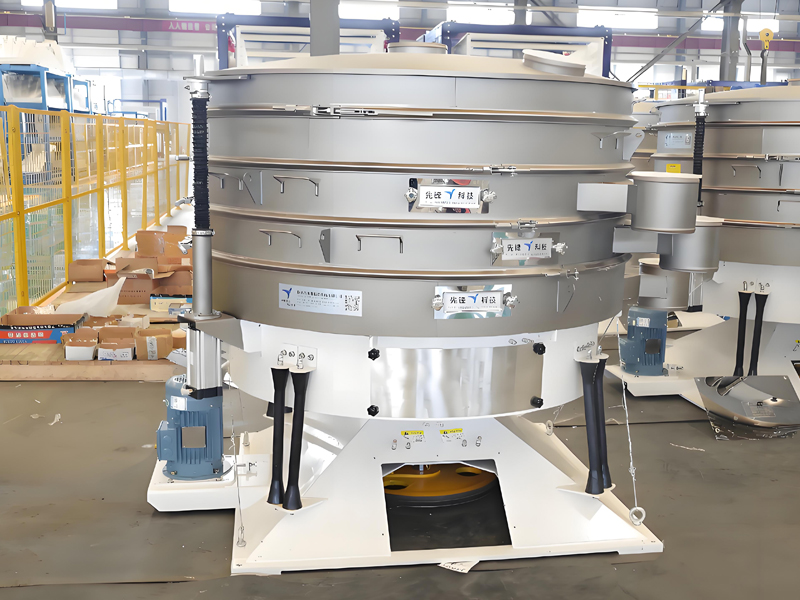

Swinging screen is a low-frequency rotary vibrating screen that simulates manual shaking. Its principle is: instantaneous motion is the synthesis of radial displacement and circular motion with this displacement as the axis (spiral motion), which can adjust the eccentricity of the exciter to produce nonlinear three-dimensional motion, and the material also produces the same motion similar to manual operation, thus achieving the purpose of screening. Combined with screening accessories, a more ideal screening effect can be obtained; Suitable for materials with circular, cylindrical, sheet-like, and even regular shapes that are prone to clogging and require precise screening.

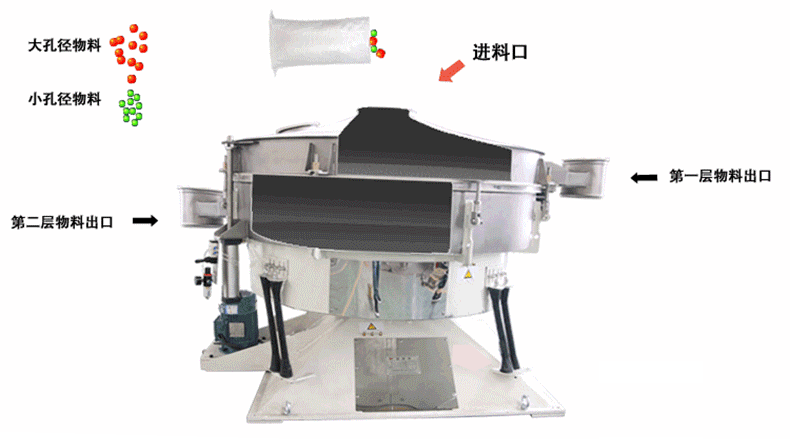

The large swing screen can reach 5 layers and provide classification of 5-6 particle sizes, with higher production capacity.
Low frequency screening with artificial shaking effectively reduces the damage of fragile materials.
Low noise and low energy loss, the noise level is always maintained at 60-70dB, ensuring smooth and quiet operation.
Dustproof and environmentally friendly, YBS swing screen does not require any auxiliary devices for air purification or dust collection. The system can come with built-in airtightness and vacuum design.

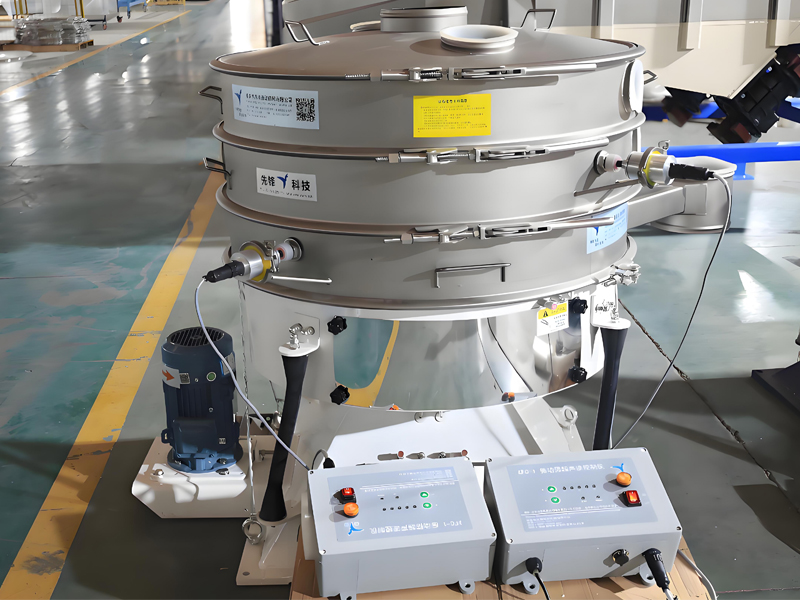

Multiple cleaning devices can be added (such as bouncing balls to clean the mesh surface, ultrasonic technology to clean the mesh surface, etc.), which can effectively solve the problem of screen blockage, ensure the continuity of screening, have a fully enclosed structure, and reduce environmental pollution.

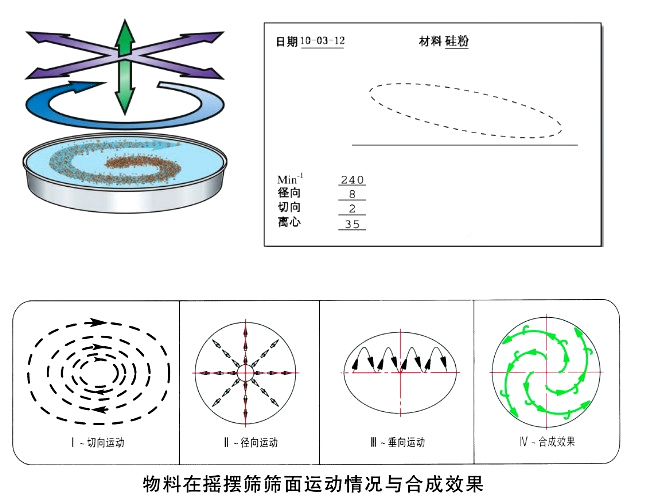

Swing screen is a low-frequency rotary vibrating screen that imitates manual shaking. Its principle is the synthesis of instantaneous motion as radial displacement and circular motion with this displacement as the axis (spiral motion). The exciter that can adjust the eccentricity produces nonlinear three-dimensional motion, and the material also produces the same motion as manual operation, thus achieving the purpose of screening. Combined with screening accessories, it can achieve more ideal screening effect, suitable for materials with circular shape, cylindrical shape, sheet shape, and even regular shape that are prone to clogging and require fine screening.
Model | sieving diameter | Screening area | Screen angle | Number of layers | Power |
YBS-600 | Φ560 | 0.25 | 0-10 | 1-5 | 0.75 |
YBS-1000 | Φ930 | 0.68 | 0-10 | 1-5 | 1.1 |
YBS-1200 | Φ1130 | 1 | 0-10 | 1-5 | 1.5 |
YBS-1600 | Φ1530 | 1.84 | 0-10 | 1-5 | 4 |
YBS-2000 | Φ1920 | 2.9 | 0-10 | 1-5 | 5.5 |
YBS-2400 | Φ2350 | 4.31 | 0-10 | 1-5 | 5.5 |
YBS-2600 | Φ2530 | 5.03 | 0-10 | 1-5 | 5.5 |
Application scope: Food industry, pharmaceutical industry, chemical industry, etc
Application materials: citric acid, milk powder, starch, sugar, vitamins, spices, tea, feed, plastics, rubber, fertilizers, sugar salt industry, renewable resources EPS、PVI 、PVC、 Resin, etc.
