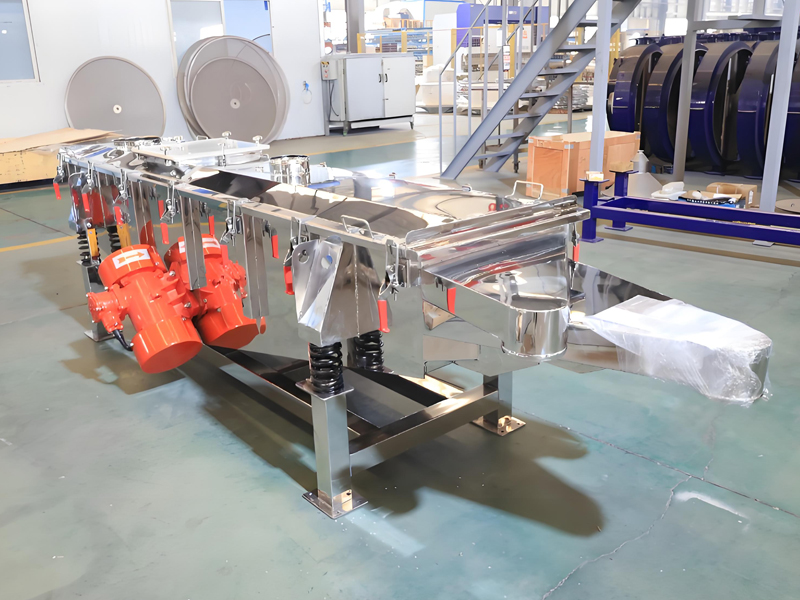

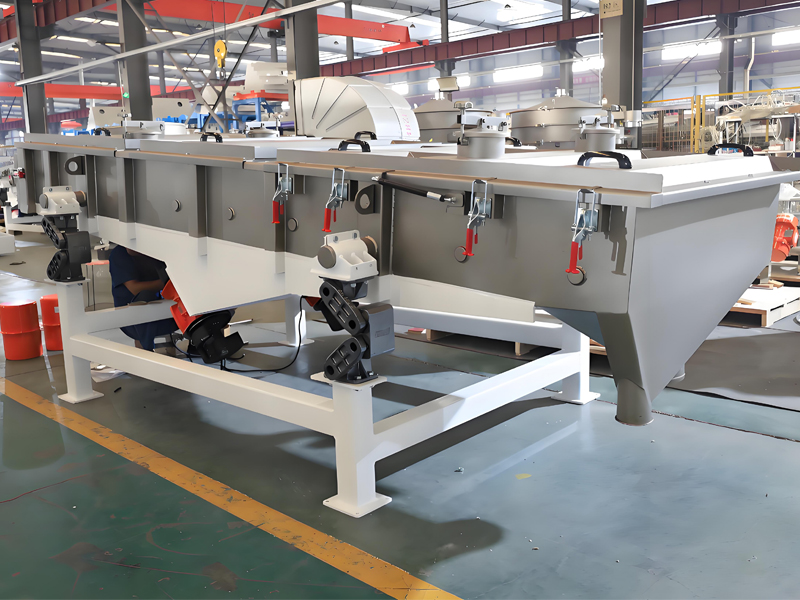

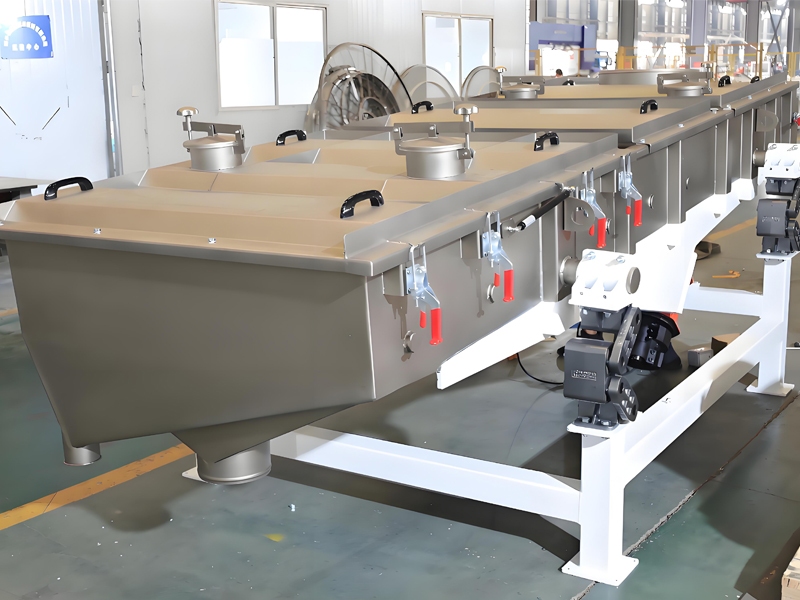

The linear vibrating screen uses a vibrating motor to vibrate as a vibration source, causing the material to be thrown up on the screen while moving forward in a straight line. The material is evenly fed into the feeding port of the screening machine from the feeder. Multiple layers of screen produce various sizes of sieved and undersized materials, which are discharged from their respective outlets. It has the characteristics of low energy consumption, high output, simple structure, easy maintenance, fully enclosed structure, no dust overflow, and automatic discharge, making it more suitable for assembly line operations.
Classify and screen various materials, and after screening, the particle size is uniform and the screening accuracy is high.
Generally, a single unit is designed with 1-5 floors, and the required number of floors can be selected according to different needs.
It has the advantages of easy maintenance and relatively low repair probability.
Use an angle adjustable excitation source to ensure a clean screen; Can be designed in multiple layers, with multiple screens; Can be evacuated under negative pressure, with a good environment.
It has a unique effect on screening and grading powdered and granular materials.

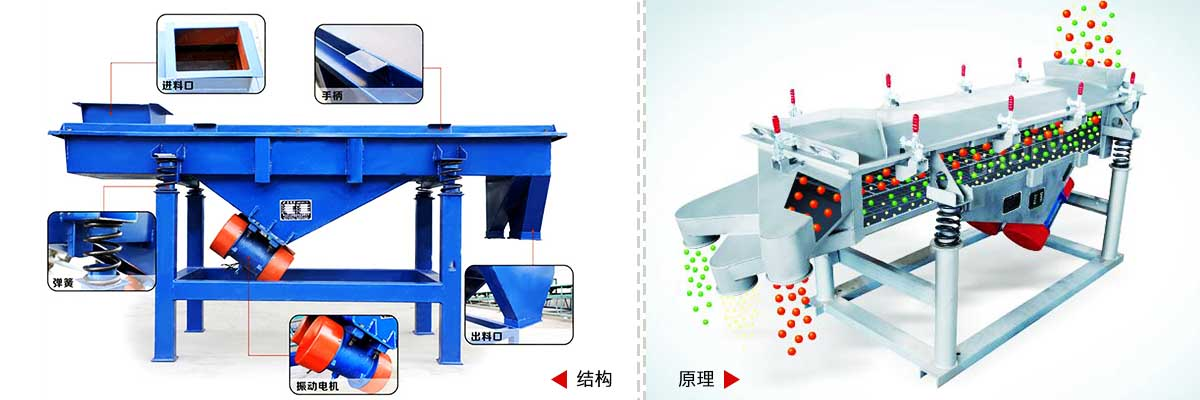

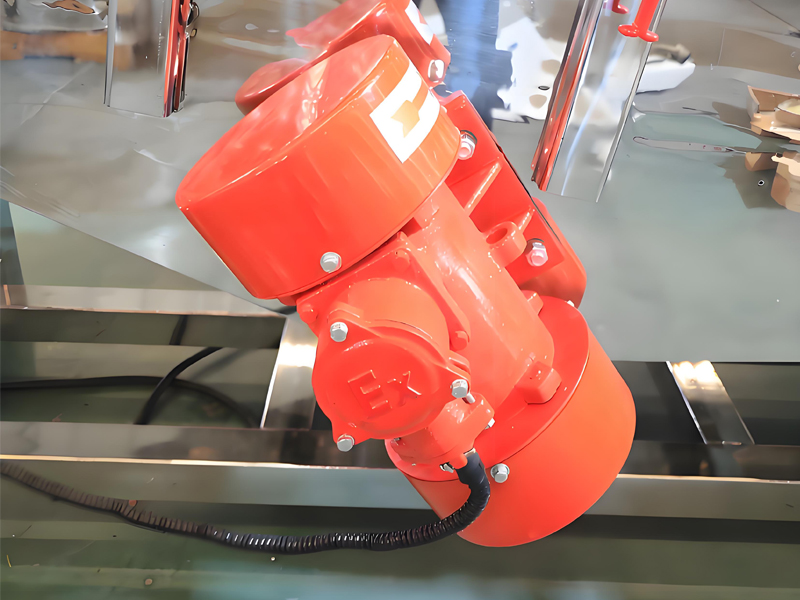

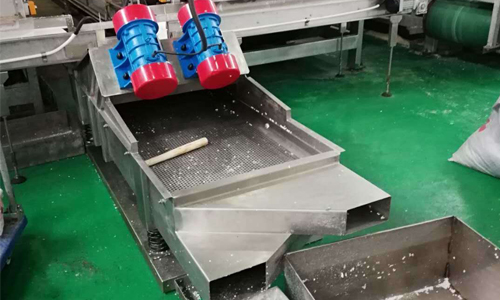

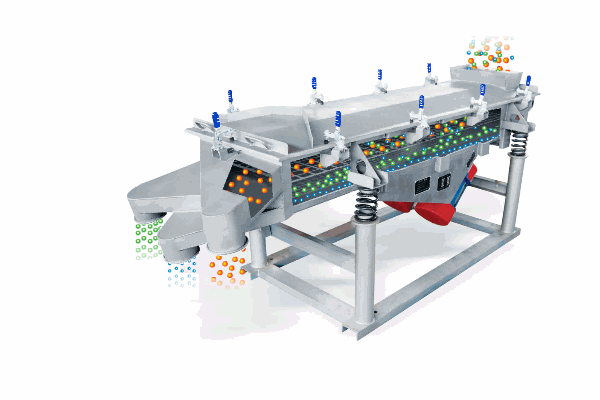

When the two vibration motors installed longitudinally on the screen body operate relative to each other, the transverse excitation force generated by them is cancelled out by the relative operation of the motors. The longitudinal excitation force is transmitted to the entire screen box through the vibration transmission body, causing the screen surface to vibrate. As a result, the material on the screen surface jumps in the direction of the discharged product due to its excitation force, and the material smaller than the screen hole falls to the lower layer through the screen hole. After continuous jumping, it flows out from the discharge port. Due to the reasonable screening process, after the material is classified by the vibrating screen, several different particle sizes of materials can be obtained to complete the material classification operation.
Model | Screen size（mm） | Material particle size（mm） | Screen surface inclination（°） | amplitude（mm） | Number of layers（s） | power（kW） |
SZF516 | 500×1600 | 0.075~20 | 0~7 | 5~8 | 1~5 | 2×（0.08~0.4） |
SZF520 | 500×2000 | 2×（0.4~0.75） | ||||
SZF525 | 500×2500 | 2×（0.75~1.1） | ||||
SZF530 | 500×3000 | 2×（1.1~1.5） | ||||
SZF535 | 500×3500 | 2×（1.1~1.5） | ||||
SZF1020 | 1000×2000 | 2×（0.75~1.1） | ||||
SZF1025 | 1000×2500 | 2×（1.1~1.5） | ||||
SZF1030 | 1000×3000 | 2×（1.5~2.2） | ||||
SZF1035 | 1000×3500 | 2×2.2 | ||||
SZF1040 | 1000×4000 | 2×（2.2~3.0） | ||||
SZF1225 | 1200×2500 | 2×（1.5~2.2） | ||||
SZF1230 | 585×3000×2 | 2×（2.2~3.0） | ||||
SZF1235 | 585×3500×2 | 2×（2.2~3.0） | ||||
SZF1535 | 735×3500×2 | 2×（2.2~3.0） | ||||
SZF1540 | 735×4000×2 | 2×（3.0~4.0） |

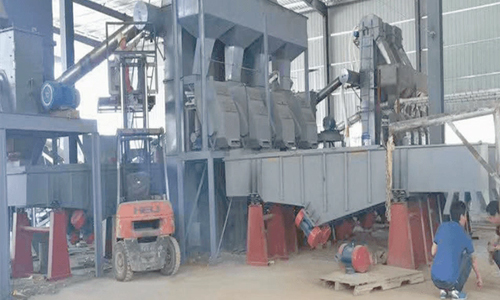

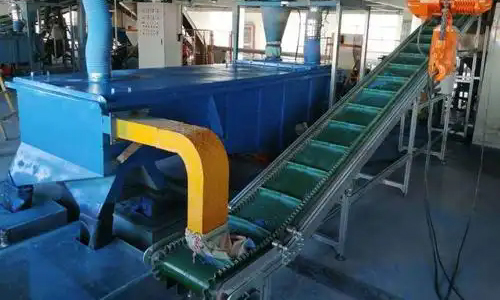

Application scope: Silicon materials, food industry, pharmaceutical industry, chemical industry, etc
Application materials: polycrystalline silicon, molten silicon micro powder, spherical silicon micro powder, silicon dioxide, sugar, salt, monosodium glutamate, chicken essence, glucose, amino acids, potassium sorbate, breadcrumbs, freeze-dried food, coconut kernels, frozen dumplings, granular pills, microspheres, traditional Chinese medicine slices, iron powder, aluminum powder, lead powder, copper powder, alloy powder, electrolytic copper powder, refractory materials, steel balls, aluminum oxide, metal metallurgy powder, sodium bicarbonate (soda ash), etc.
