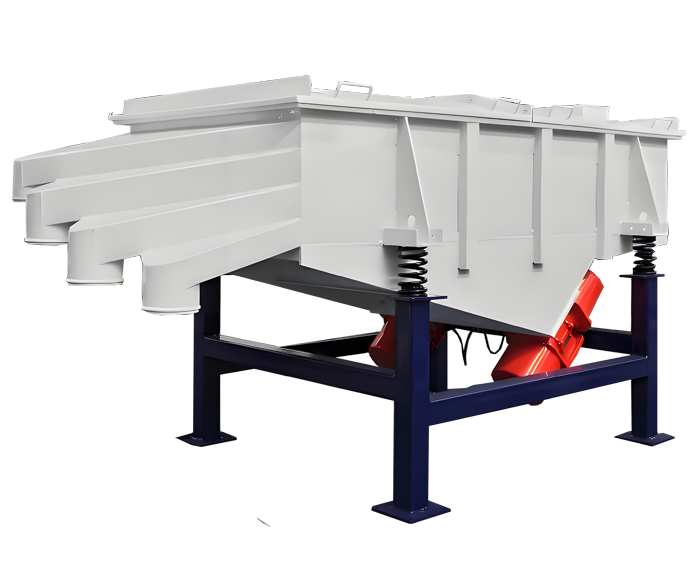

Linear vibrating screens utilize a vibrating motor as the vibration source, causing materials to be thrown up on the screen mesh while simultaneously moving forward in a straight line. The material enters the screening machine's feed inlet evenly from the feeder. Through multiple layers of screens, several sizes of oversize and undersize materials are produced, each discharging from its respective outlet. Features include low energy consumption, high output, simple structure, easy maintenance, fully enclosed structure, no dust spillage, and automatic discharge, making it ideal for assembly line operations.
This machine performs grading and screening of various materials, resulting in uniform particle size and high screening accuracy.
A single unit is typically designed with 1-5 layers, and the required number of layers can be selected according to different needs.
It offers advantages such as convenient maintenance and a relatively low probability of repair.
It uses an angle-adjustable vibration source for thorough screening; multiple layers can be designed for maximizing screening capacity; and negative pressure evacuation provides a better working environment.
It has unique effects on the screening and grading of powdery and granular materials.

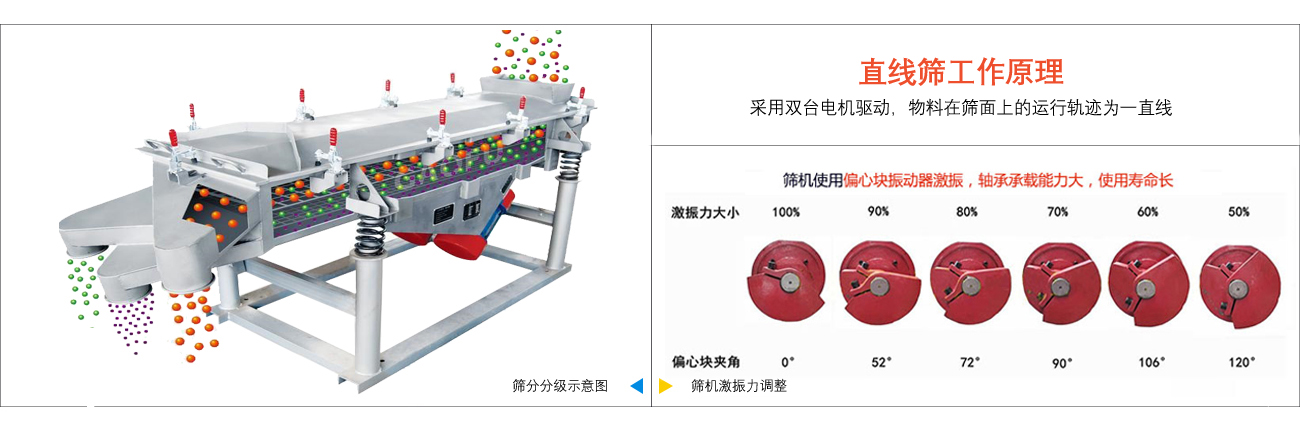

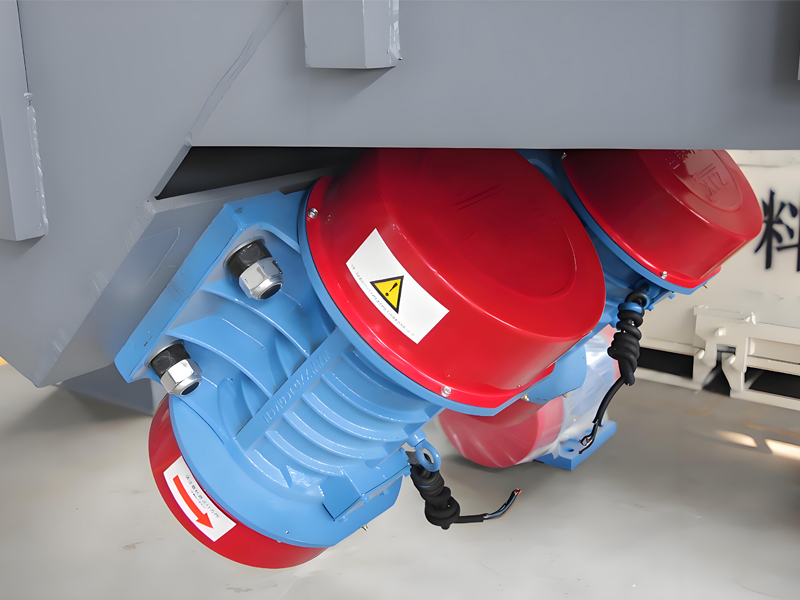

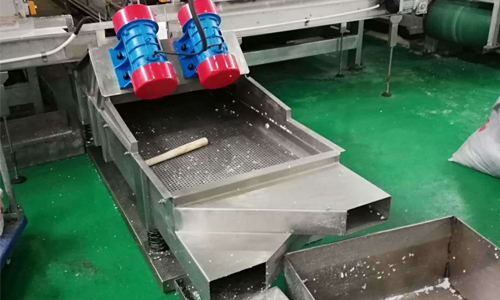

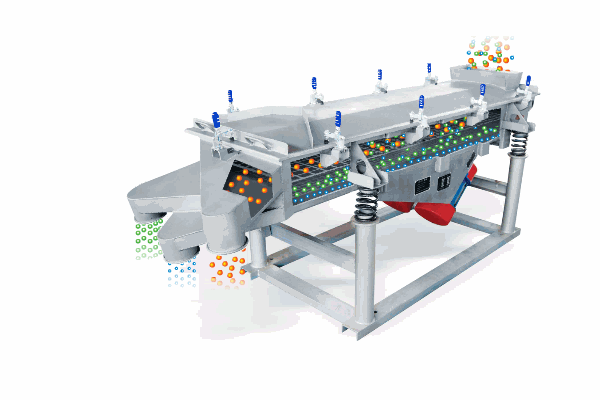

When two vibrating motors mounted longitudinally on the screen body operate relative to each other, the transverse excitation force generated by them cancels each other out due to the relative operation of the motors. The longitudinal excitation force is transmitted to the entire screen box through the vibration transmission body, causing the screen surface to vibrate. As a result, the material on the screen surface is subjected to the excitation force and jumps on the screen surface towards the discharge direction. The material smaller than the screen hole falls to the lower layer through the screen hole and flows out from the discharge port after continuous jumping. Due to the reasonable screening process, after the material is classified by the vibrating screen, several different particle sizes can be obtained, thus completing the material classification operation.
Model | Screen size（mm） | Material particle size（mm） | Screen surface inclination（°） | amplitude（mm） | Number of layers（s） | power（kW） |
SZF516 | 500×1600 | 0.075~20 | 0~7 | 5~8 | 1~5 | 2×（0.08~0.4） |
SZF520 | 500×2000 | 2×（0.4~0.75） | ||||
SZF525 | 500×2500 | 2×（0.75~1.1） | ||||
SZF530 | 500×3000 | 2×（1.1~1.5） | ||||
SZF535 | 500×3500 | 2×（1.1~1.5） | ||||
SZF1020 | 1000×2000 | 2×（0.75~1.1） | ||||
SZF1025 | 1000×2500 | 2×（1.1~1.5） | ||||
SZF1030 | 1000×3000 | 2×（1.5~2.2） | ||||
SZF1035 | 1000×3500 | 2×2.2 | ||||
SZF1040 | 1000×4000 | 2×（2.2~3.0） | ||||
SZF1225 | 1200×2500 | 2×（1.5~2.2） | ||||
SZF1230 | 585×3000×2 | 2×（2.2~3.0） | ||||
SZF1235 | 585×3500×2 | 2×（2.2~3.0） | ||||
SZF1535 | 735×3500×2 | 2×（2.2~3.0） | ||||
SZF1540 | 735×4000×2 | 2×（3.0~4.0） |

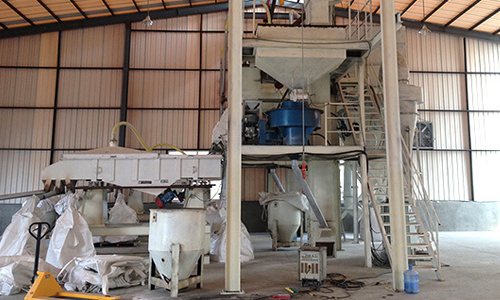

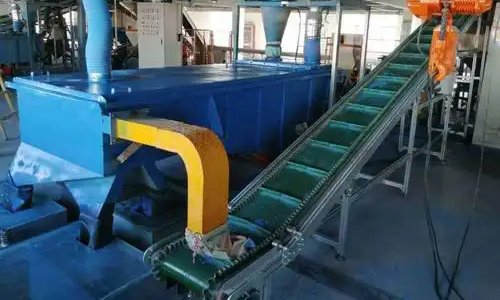

Application scope: Silicon materials, food industry, pharmaceutical industry, chemical industry, etc
Application materials: polycrystalline silicon, molten silicon micro powder, spherical silicon micro powder, silicon dioxide, sugar, salt, monosodium glutamate, chicken essence, glucose, amino acids, potassium sorbate, breadcrumbs, freeze-dried food, coconut kernels, frozen dumplings, granular pills, microspheres, traditional Chinese medicine slices, iron powder, aluminum powder, lead powder, copper powder, alloy powder, electrolytic copper powder, refractory materials, steel balls, aluminum oxide, metal metallurgy powder, sodium bicarbonate (soda ash), etc.
cement
chemical fertilizer
Traditional Chinese Medicine Powder
Traditional Chinese Medicine Granules
Traditional Chinese Medicine Liquid
