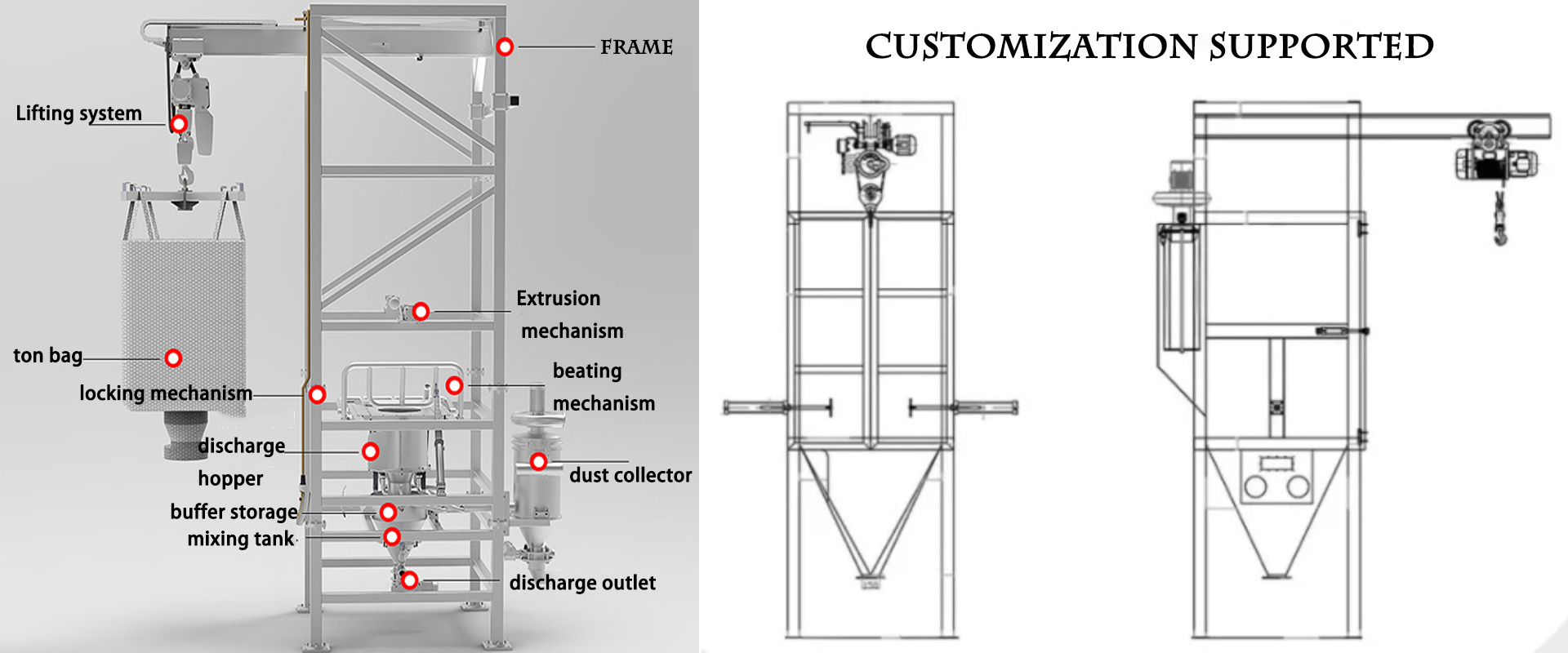

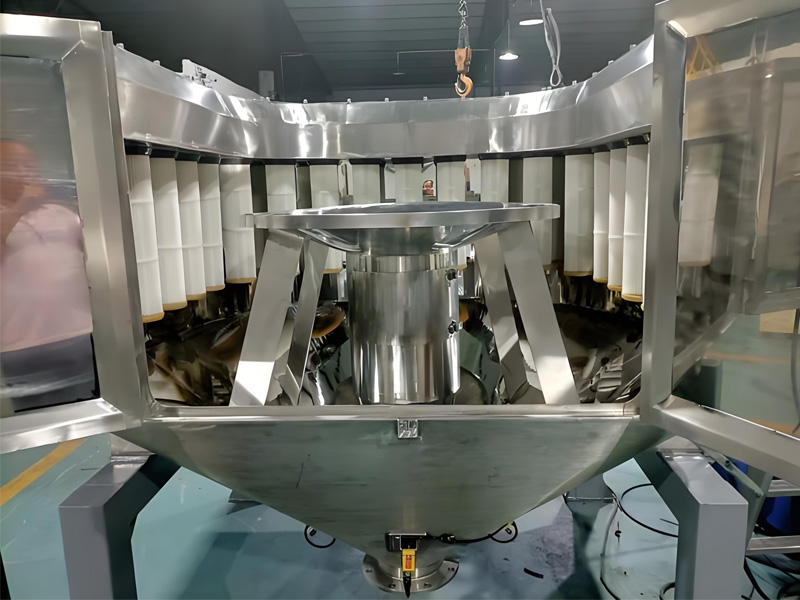

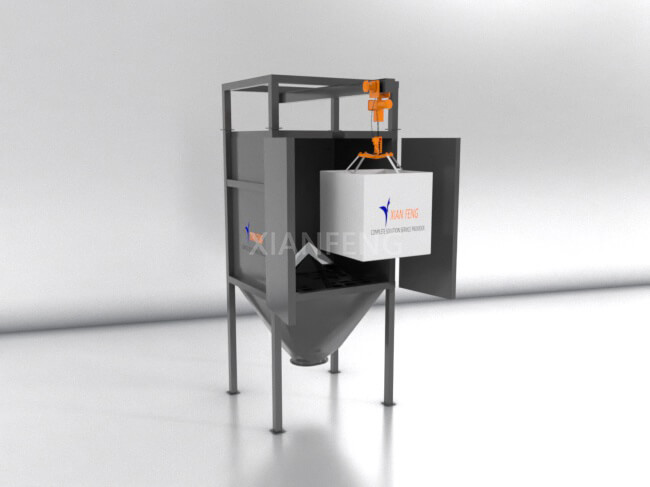

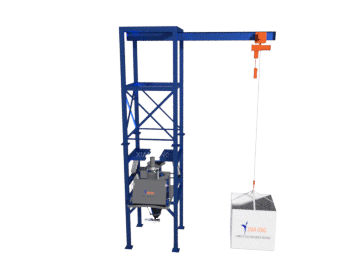

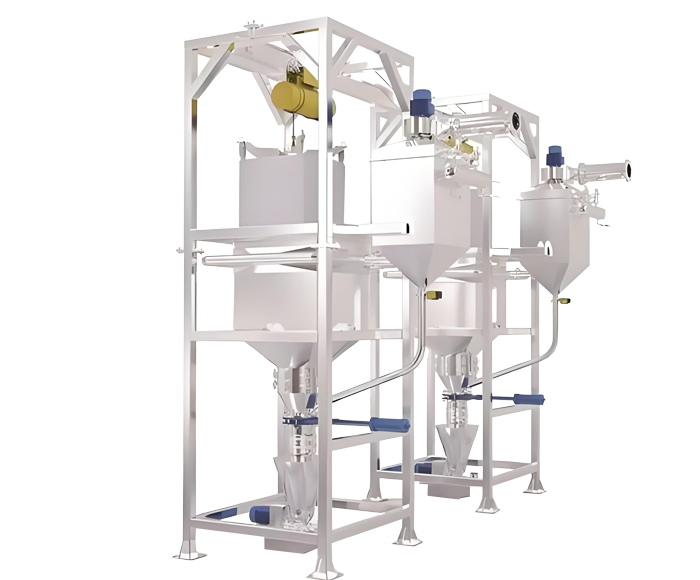

The ton bag feeding station is primarily designed for opening and unloading powdered and granular ton bag materials. This equipment boasts several advantages, including low power consumption, excellent sealing performance, swift unpacking and unloading, customizable stopping and feeding times (without compromising the properties of unused materials), and reduced labor intensity. Materials are lifted to the feeding platform via an electric hoist, and the packaging bag's discharge opening is manually or automatically opened. The unpacked powdered and granular materials flow into the downstream device of the feeding platform by gravity. During this process, the dust raised is drawn into the filter chamber by a strong negative pressure airflow, and then trapped on the outer surface of the filter cartridge. The clean gas passes through the interior of the filter cartridge and is subsequently expelled by a fan, ensuring dust-free operation and running on site.
The structure is simple and easy to operate. The magnetic separator can remove foreign objects from large bags。

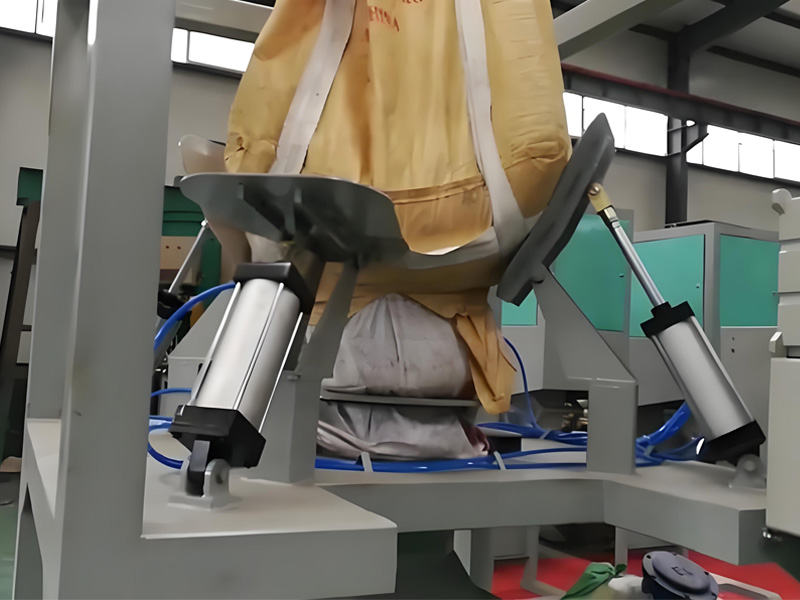

The flapping device ensures the smooth transfer of materials from the large bag to the next process。
The crusher crushes the agglomerates during the bag opening process to ensure the smooth progress of the next step。
Fully automated operation improves production efficiency and reduces labor intensity。

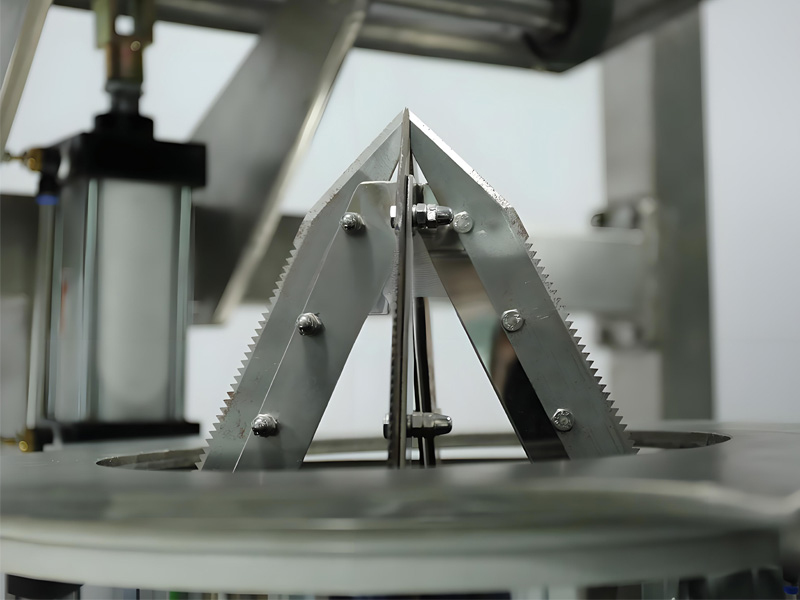

Closed bag opening eliminates dust flying, improves the working environment, and reduces production costs。
The integrated design of bag opening, beating, crushing, and magnetic separation features a compact structure and convenient operation。
The ton bag feeding station lifts the ton bag-packed materials to the feeding inlet. After manually opening the discharge port of the packaging bag, the flow control valve and the accompanying vibrating discharge device are activated to facilitate the powder and granular materials inside the bag to fall into the lower hopper due to their own weight. The ton bag feeding station is primarily designed to handle dry powder and granular materials packaged in large bags (ton bags) weighing between 1000–2000 kg (1–2 tons). It is not suitable for liquids, highly wet and viscous materials, or flammable and explosive dusts (unless specially designed for explosion protection).
Application scope: Unpacking and unloading of dry powder and granular materials such as plastic resins and food additives in large bag packaging in the food, pharmaceutical, chemical, and metallurgical industries.
Application materials: food industry: flour, milk powder, starch, sugar powder, cereal grains, additives (such as vitamin premix, essence powder), dehydrated vegetable granules, etc
Chemical industry and plastics: polyethylene (PE), polypropylene (PP) granules, resin powder, pigments, catalysts, fertilizers, PVC powder
Pharmaceuticals and health products: Pharmaceutical excipients (such as lactose, microcrystalline cellulose), active pharmaceutical ingredient powder (requiring GMP-grade stainless steel equipment), and traditional Chinese medicine extract powder
Building materials and minerals: cement, fly ash, TSP (tricalcium phosphate), quartz sand (fine particles), mineral powder (requiring wear-resistant design)
New energy and new materials: positive and negative electrode materials for lithium batteries (such as lithium cobaltate, graphite powder), ceramic powder, and silicon micro-powder
Feed and Agriculture: premix, additives, grain feed, soybean meal powder
