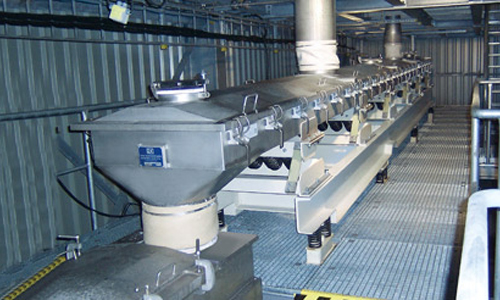

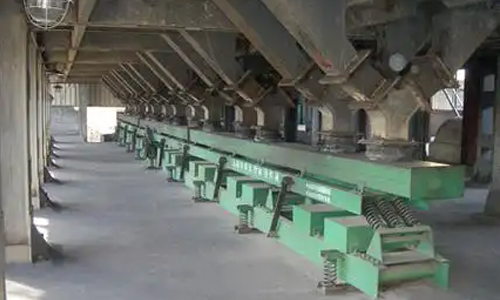

The vibration conveyor uses a vibration motor as the vibration source to make the material move forward in a straight line while being thrown up, achieving the purpose of conveying. There are two types: open and closed. The cross-section of the material trough can be made into various forms such as circular, rectangular, or trapezoidal. The feeding and discharging of the material trough can also be made into various forms such as one point feeding, one point discharging, multi-point discharging, etc. according to the needs.
It can uniformly, timed, and continuously feed block and granular materials from the storage bin to the receiving device, with a high degree of automation.
The width of the material trough ranges from 6 inches to 5 feet, with a length of up to 30 feet and a conveying length of up to 10 meters. Multiple machines can be used in series to achieve long-distance conveying.
The feeding and discharging of the material trough can also be made into single/multi-point feeding, single/multi-point discharging and other forms as needed.
The excitation force can be adjusted, the flow rate can be changed and controlled at any time, and the adjustment is convenient and stable.

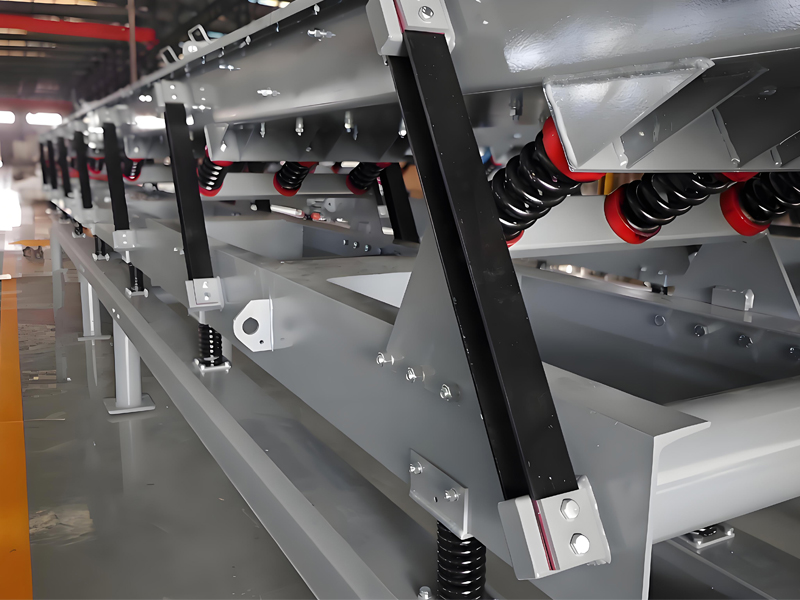

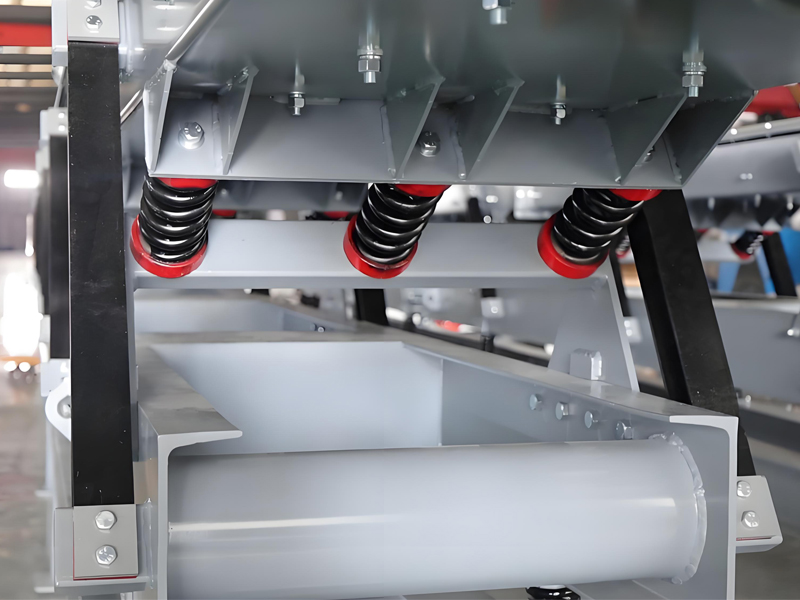

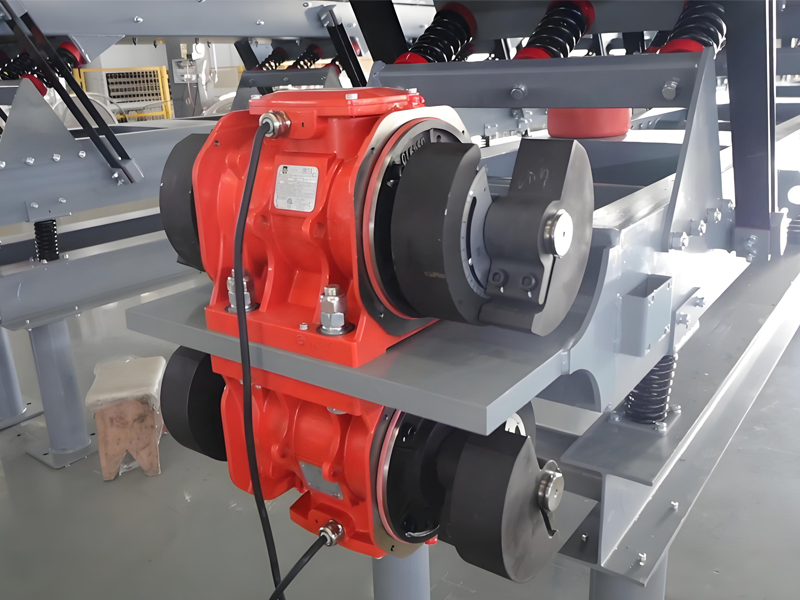

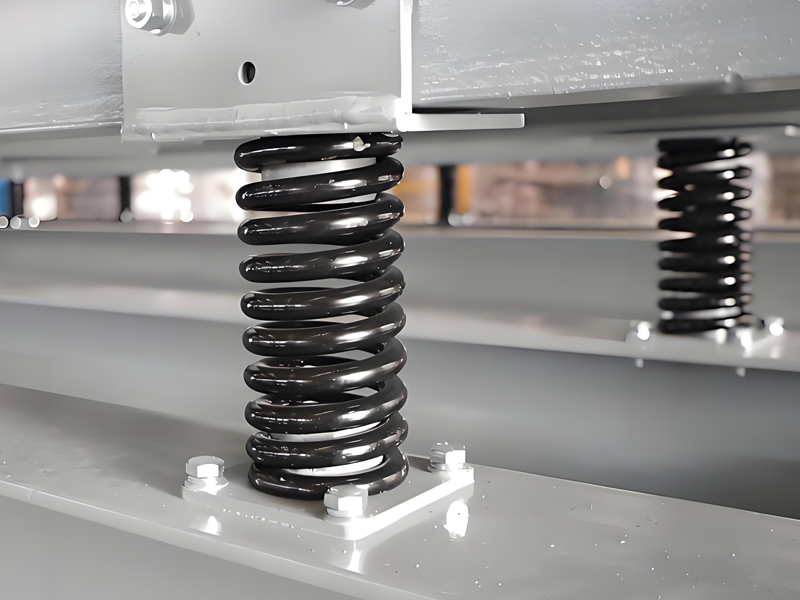

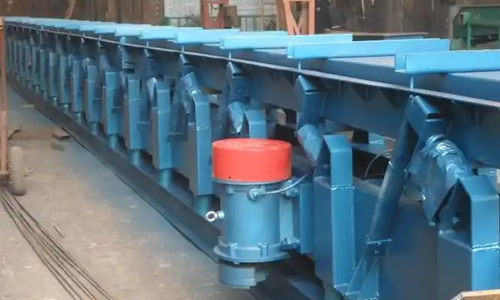

The vibration conveyor uses two vibration motors as the excitation source, and applies the principle of self synchronization. The two vibration motors rotate in reverse, causing the bottom balance frame of the conveyor to produce reciprocating vibration. Through the action of the main vibration spring and guide plate spring, the upper conveyor groove is driven to vibrate, thereby achieving the purpose of conveying materials.

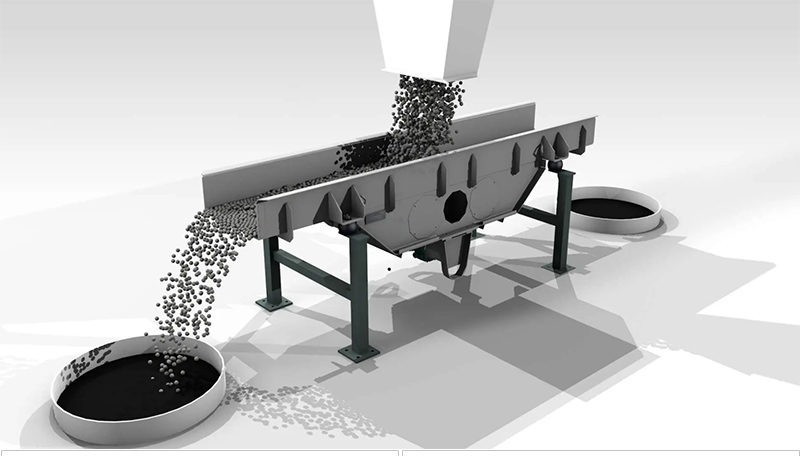

The working principle of a vibrating conveyor is based on the action of vibration force. The vibration conveyor adopts two vibration motors as the excitation source, using the principle of self synchronization. When the vibration motors start, the excitation force generated by the exciter is transmitted to the conveyor trough. The two vibration motors rotate in reverse, causing the bottom balance frame of the conveyor to produce reciprocating vibration. Through the action of the main vibration spring and the guide plate spring, the upper conveyor trough is driven to vibrate. This vibration force causes sliding friction between the materials in the conveyor trough, thereby achieving forward material transport.
| 型号 | Transportation capacity (t/h) | Conveying distance （m） | Transporting particles （mm） | Double amplitude （mm） | frequency (Next / min) | power （kw） | electric current （A） | Basic vertical dynamic load （N） | weight （kg） | |
| XFGL-3 | Ⅰ | 11 | 3 | 30 | 4-6 | 1450 | 0.75×2 | 1.84×2 | 1570 | 308 |
| Ⅱ | 17 | 60 | 2140 | 420 | ||||||
| Ⅲ | 25 | 100 | 2300 | 450 | ||||||
| XFGL-4 | Ⅰ | 11 | 4 | 30 | 4-6 | 1450 | 0.75×2 | 1.84×2 | 2650 | 520 |
| Ⅱ | 17 | 60 | 2960 | 580 | ||||||
| Ⅲ | 25 | 100 | 3160 | 620 | ||||||
| XFGL-5 | Ⅰ | 9 | 5 | 30 | 4-6 | 1450 | 1.5×2 | 3.84×2 | 3320 | 650 |
| Ⅱ | 15 | 60 | 3520 | 690 | ||||||
| Ⅲ | 23 | 100 | 3670 | 720 | ||||||
| XFGL-6 | Ⅰ | 9 | 6 | 30 | 5-7 | 960 | 2×2 | 4.1×2 | 4030 | 790 |
| Ⅱ | 13 | 60 | 4390 | 860 | ||||||
| Ⅲ | 23 | 100 | 5610 | 1100 | ||||||
| XFGL-7 | Ⅰ | 9 | 7 | 30 | 5-7 | 960 | 2×2 | 4.1×2 | 6120 | 1200 |
| Ⅱ | 13 | 60 | 6890 | 1350 | ||||||
| Ⅲ | 20 | 100 | 7190 | 1410 | ||||||
| XFGL-8 | Ⅰ | 7 | 8 | 30 | 5-7 | 960 | 2.5×2 | 5.75×2 | 8160 | 1600 |
| Ⅱ | 12 | 60 | 8780 | 1720 | ||||||
| Ⅲ | 8 | 100 | 9340 | 1850 | ||||||
| XFGL-9 | Ⅰ | 5 | 9 | 30 | 6-8 | 960 | 3.7×2 | 7.4×2 | 10710 | 2100 |
| Ⅱ | 10 | 60 | 11480 | 2250 | ||||||
| Ⅲ | 15 | 100 | 12250 | 2400 | ||||||
| XFGL-10 | Ⅰ | 5 | 10 | 30 | 6-8 | 960 | 3.7×2 | 7.4×2 | 12760 | 2500 |
| Ⅱ | 10 | 60 | 13520 | 2650 | ||||||
| Ⅲ | 15 | 100 | 14290 | 2800 | ||||||
| XFGL-12 | Ⅰ | 4 | 12 | 30 | 6-8 | 960 | 3.7×2 | 7.4×2 | 13830 | 2800 |
| Ⅱ | 8 | 60 | 14800 | 2900 | ||||||
| Ⅲ | 12 | 100 | 15870 | 3110 | ||||||
Motor vibration conveyor, can be made according to user needs:
Lower vibration type (X): The vibration motor is placed under the conveyor;
Upper vibration type (S): The vibration motor is placed on top of the feeder;
Variable speed (T): The vibration frequency of the vibration motor can be infinitely adjusted within the range of 0-rated frequency;
Open type (K): The upper part of the conveyor is open, which is more suitable for downward vibration type;
Sealed (F): The conveyor is completely sealed except for the inlet and outlet ports;
Base type (Z): For large (heavy) conveyors, a base type structure is generally used.
Food processing industry: transportation and distribution of granular or block shaped food raw materials such as grains, sugar, coffee beans, nuts, vegetables, fruits, etc.
Chemical industry: transportation and distribution of powdered or granular materials such as chemicals, plastic pellets, pigments, rubber pellets, etc.
Mining and construction industries: transportation and distribution of granular materials such as ore, sand and gravel, cement, gypsum, etc.
Pharmaceutical industry: transportation and distribution of pharmaceutical raw materials, powders, capsules, tablets, etc.
Metallurgy and metalworking industry: transportation and distribution of metal particles or fragments such as steel, aluminum, copper, etc.
Agriculture and feed processing industry: transportation and distribution of granular materials such as feed, feed ingredients, and agricultural products.
Packaging industry: transportation and arrangement of bottled food, pharmaceuticals, cosmetics and other materials.
Research laboratory: transportation and distribution of experimental samples.
